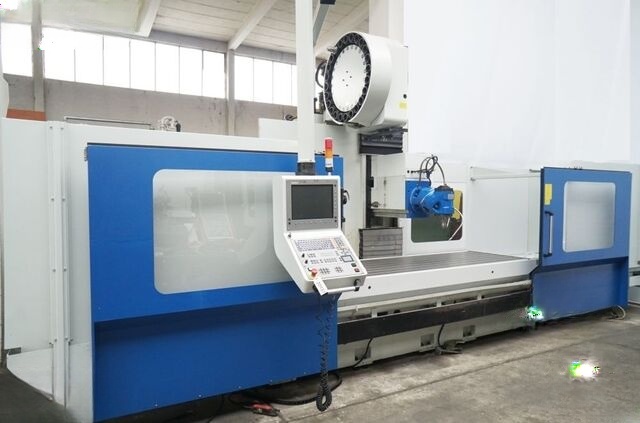

Buy Used Milling Machine from Ibermach of year - 2004, Model - Ecomill BF3000

SKU : 2406467

I am a dealer

Subscribe for similar machines

X-Travel 3,000 mm
Y-Travel 1,000 mm
Z-Travel 1,000 mm
Control System Heidenhain iTNC 530 CNC
Table Size 3,230 mm x 1,050 mm
Table Load Capacity 8.0 tons
Spindle Taper ISO 50
Tool Change Unit 24 positions
Spindle Speed Range 30 - 3,500 rpm
Spindle Drive Capacity 25 kW
Feed Rate (Stepless) 1 - 5,000 mm/min
Rapid Traverse 10.0 m/min
Chip Conveyor Spiral type, with screw type chip conveyors at front and back of the table
Voltage 380 V, 50 Hz
Total Power Requirement 35 kVA
Machine Weight Approximately 12.0 tons
Machine Dimensions (L x W x H) 7.40 m x 3.65 m x 3.60 m
Hydraulic Power Unit Dimensions 1.40 m x 0.50 m x 0.60 m
Oil Chiller Unit Dimensions 0.45 m x 0.70 m x 0.85 m
Additional Features
Universal Milling Head (Huron-Type), manually adjustable
Y-axis guide ways renewed with TURCITE for enhanced accuracy and longevity
Ball screws and bearings in X/Y/Z axes renewed, ensuring precision and reliability
Machine Hours
Machine ON 23,724 hours
Spindle ON 7,968 hours
