Milling Machine

Buy New Milling Machine from Samson, Model - 4-KS

SKU : 2503371

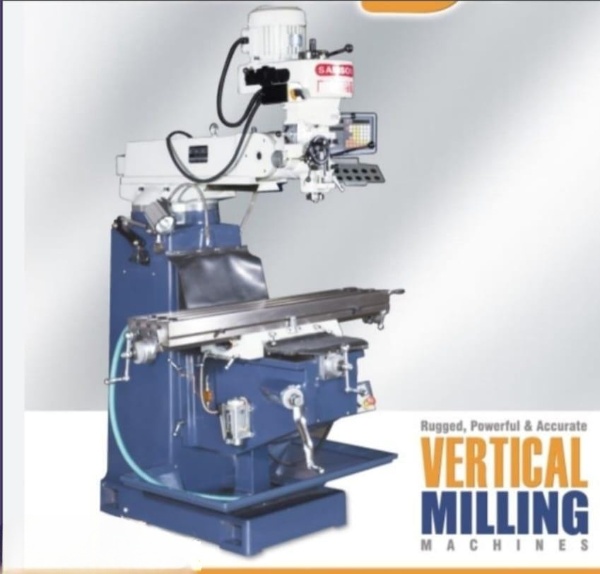

New Samson Milling Machine 4-KS

Price : RFQ

CONTACT SELLER

Machine overview

Machine Specifications

  • Length 1270 mm
  • Width 254 mm

Machine Description

  • Vertical Milling Machine
  • Table Size 1270 mm × 254 mm
  • T-Slots (No./Width) 3 / 16 mm
  • Travels (X / Y / Z) 875 mm / 400 mm / 480 mm
  • Ram Travel 590 mm
  • Spindle Taper ISO 30
  • Quill Travel 127 mm
  • Distance Spindle to Table 430 mm
  • Distance Spindle to Column 340 mm
  • Spindle Speeds (Low Range) 66 to 2270 RPM
  • Spindle Speeds (High Range) 66 to 2270 RPM
  • Number of Power Feeds 3
  • Power Down Feed (per revolution of spindle) 0.040 / 0.080 / 0.15 mm/rev
  • Head Movement (Left to Right) 90°
  • Head Tilt (Front & Back) 45°
  • Max. Table Load Capacity 330 kg
  • Motor Power 3 HP
  • Overall Dimensions (L × W × H) 1670 mm × 1690 mm × 2090 mm
  • Machine body made of MEHANITE for durability
  • Heavy-duty cast iron construction
  • Hardened & ground X, Y slide ways
  • Hardened & ground table top
  • Turcite B coating on X & Y slide ways
  • Spindle hardened & ground with pre-loaded double nuts for high precision
  • Built-in coolant tank
  • Centralized lubrication system
  • 2-axis DRO for X & Y Axis
  • Control Panel
  • Splash Guard
  • 150 mm Swivel Base Vice
  • ISO 30 Spindle with Collets Set
  • 6" Clamping Kit
  • Micro Feeds & Draw Bar
  • Halogen Machine Lamp
  • Tool Kit with Box
  • Instruction Manual
  • Optional Accessories
  • Super Power Feed Box for X, Y & Z axis
  • Manual Edge Finder
