Home
Metal Cutting
Milling Machine
Soraluce
TL25
This machine not available
Milling Machine

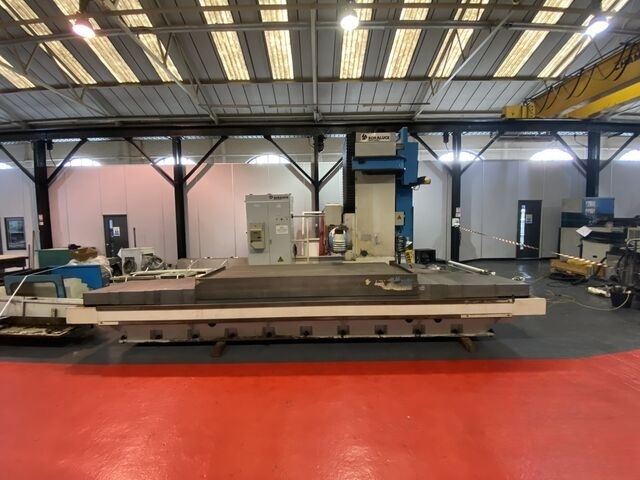

Buy Used Milling Machine from Soraluce of year - 1998, Model - TL25
SKU : 2407380
CONTACT SELLER
Hello, Your machine Soraluce - Milling Machine listed on Zatpatmachines.com. I am interested in buying it. I'm looking forward to your offer. Kind regards
I am a dealer
Subscribe for similar machines
SEND REQUEST
Privacy Statement
Machine
overview
Type
Milling Machine
Category
Metal Cutting
Brand
Soraluce
Year
1998
Condition
Used
Location
United Kingdom
Machine
Specifications
Controller
Heidenhain
Length
2860 mm
Width
1000 mm
Machine
Description
Fitted with Heidenhain TNC426 control system
Coolant equipment with external coolant to the head
able (Bed) Working Surface 2,860 x 1,000 MM
Longitudinal Column Travel (X-Axis) 2,500 MM
Vertical Travel (Y-Axis) 1,600 MM
Ram Travel (Z-Axis) 1,000 MM
Spindle Nose Taper #50 – DIN 69871-A ISO 7388/1
Pull Stud DIN 69872¬ Form A ISO-7388/2-Form A
Spindle Speeds - 2 Ranges 7 ~ 187 & 5 ~ 3,000 RPM
Spindle Power 22 KW
Cutting Feed Rate 5 ~ 5,000 MM / MIN
Rapid Traverse (X / Y / Z) 15 / 15 / 15 M / MIN
Tool Storage Capacity 30 Stations
Max Tool Dia 110 MM
Max Tool Dia Between Alternate Stations 200 MM
Max Tool Length 350 MM
Max Tool Weight 20 KG
Tool Shank ISO-50
Spindle Drive Motor 22.0 KW with ZF GEARBOX “ SPEED
Voltage 415V / 50HZ / 3PH
Floor Space 5950 x 4655 MM
Height 3820 MM
Weight (approx.) 18,500 KGS
