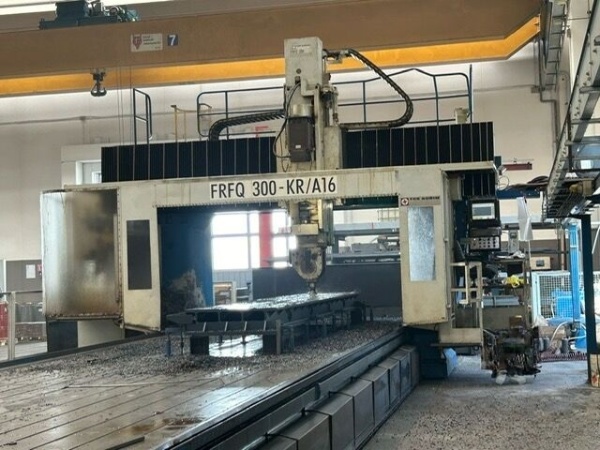

5-Axis Gantry Milling Machine
Z-Axis (Vertical Travel) 1,200 mm
Table Dimensions 16,000 x 3,000 mm
Table Load Capacity 4,000 kg/m²
Number of T-Slots / Pitch 13 / 220 mm
Central Slot Width 22H7 mm
Other Slot Widths 22H11 mm
Table Height from Base 700 mm
Passage Between Uprights 3,500 mm
Passage Between Fixing Plane and Transverse Plane 1,800 mm
Max. Spindle Speed 4,000 RPM
Spindle Motor Power 30 kW
Torque on Spindle 1,000 Nm
Tool Taper DIN 69871-A50
Spindle Taper ISO 50
Tool Clamping Force 10,500 N
Spindle Diameter (Front Bearing) 85 mm
Spindle Cooling Internal Cooling
Spindle Head (5-Axis Continuous)
B-Axis (Swivel Head) ±105° (Total 210°)
Max Torque 1,800 Nm
Rotation Speed 1 – 5,400°/min
C-Axis (Rotary Table or Swivel Base) 360°
Max Torque 2,500 Nm
Rotation Speed 1 – 1,800°/min
Horizontal Spindle Axis (Min to Table) 325 mm
Horizontal Spindle Axis (Max to Table) 1,575 mm
Vertical Spindle Face (Min to Table) 30 mm
Horizontal Spindle Face (Inside Edge to Table) 105 mm
Vertical Spindle Axis (Inside Edge to Table) 450 mm
Max. Feed Force (X/Y/Z Axes) 30,000 N
Feed Range 1 – 5,000 mm/min
Rapid Traverse X-Axis 15 m/min
Rapid Traverse Y-Axis 15 m/min
Rapid Traverse Z-Axis 12 m/min
Tool Changer 40-position Automatic Tool Changer
Machine Length 20,196 mm
Machine Width 8,884 mm
Machine Height 5,645 mm
Covered Area 105 m²
Total Machine Weight (with Tool Magazine & Accessories) 94,000 kg
Electrical Cabinet Weight 850 kg
Power Supply 400V / 50Hz
Power Consumption 60 kVA
