Plano Miller

Buy Used Plano Miller from Waldrich of year - 1968, Model - Coburg F2

SKU : 2503139

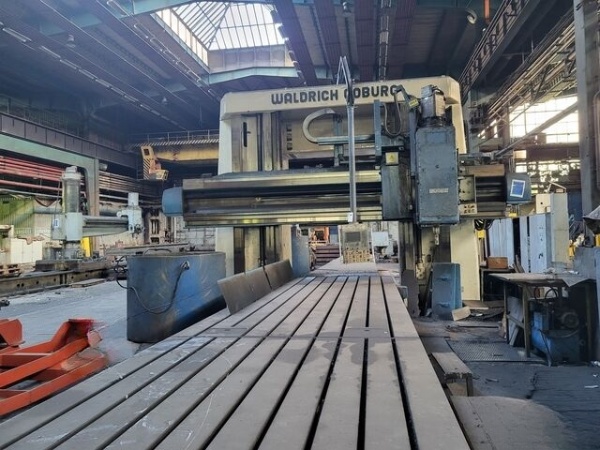

Used Waldrich Plano Miller 1968 Coburg F2

Price : €57,500

CONTACT SELLER

Machine overview

Machine Specifications

  • Controller Heidenhain TNC 124
  • X Travel 10400 mm
  • Y Travel 2540 mm

Machine Description

  • Z-Axis Milling Head Ram Vertical Travel 700 mm
  • Feed Range
  • X 1 - 1500 mm/min
  • Y 1 - 1500 mm/min
  • Z 1 - 200 mm/min
  • Rapid Axes Feed
  • X Max. 2000 mm/min
  • Y Max. 1800 mm/min
  • Z Max. 400 mm/min
  • Milling Spindle Speed Ranges
  • 1 - 56 rpm
  • 18 - 140 rpm
  • 45 - 230 rpm
  • 75 - 710 rpm
  • Moving Table Load Max. 24,500 kg (uniform distribution)
  • Moving Table Total Surface (400 + 10,000 + 400) x 2000 mm
  • Moving Table Active Surface 10,000 x 2000 mm
  • Distance Between Columns 2400 mm
  • Machine Weight Approx. 70,000 kg
  • Accessories & Retrofit (2005 by TMG SA)
  • 4-Position 90° Milling Head
  • Heidenhain TNC 124 Positioning Numeric Control (X, Y, Z)
  • SIEMENS Drive & Motors
  • 2x 1FT5 SIEMENS Feed Axis Motors (Y, Z)
  • 2x 1FT6 SIEMENS Feed Axis Motors (X)
  • 1PH7 SIEMENS 37 kW Spindle Motor (S)
  • SIEMENS SIMODRIVE 611A for Axes & Spindle Motors
