Machine design

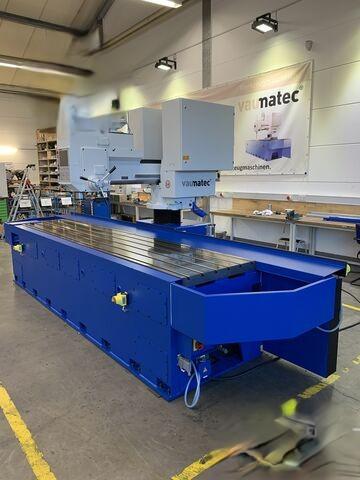

CNC high-speed radial drilling machine in traveling column design
Work table 4000 x 800 mm with 6 T-slots 18 mm
Machine bed and table substructure in torsion- and bending-resistant welded construction
Outrigger travel 1050 mm
Cantilever as one-piece cast construction with high inherent damping
SK 40 drilling spindle with tool clamping device
Infinitely variable speed programming via frequency-controlled AC spindle drive
Stepless quill feed via three-phase servo motor
Linear roller guides for cantilever and U-axis
Thread cutting device
Chip collection tray
Central lubrication
Machine light LED
Safety guard on drill adjustable, separating, monitored with limit switch
Torque support mounted on the quill
Coolant device and minimum quantity lubrication, programmable
Status indicator light
CE marking
Dimensions and travel
Tool holder SK 40
Table dimensions mm 4000 x 800
Number of T-slots 6
Distance between T-slots mm 140
Distance spindle bottom edge - min. mm 140
Table top edge max. mm 740
Drilling radius min. mm 540
max. mm 1590
Travel distance U-axis mm 2600
Y-axis travel mm 1050
Quill stroke (Z-axis) mm 200
Column stroke (W-axis) mm 400
Cutting values
Drilling capacity into solid St 60 40
GG 22 50
Thread cutting St 60 M 36
GG 22 M 42
Main spindle drive
AC motor, frequency-controlled kW 5.5 at 100 % duty cycle.
Speed range min -1 15 - 2800
Torque Nm max. 250
constant from min -1 15 - 200
Feed drives
X-axis - AC servo motor kW 0.25
Y-axis - AC servo motor kW 0.25
Z-axis - AC servo motor kW 4.50
W-axis - AC servo motor kW 2.50
U-axis - AC - servo motor kW 2.50
Rapid traverse speeds (X/Y/Z) m/min. 7.5 / 7.5 / 5
Rapid traverse speeds (U/W) m/min. 7.5 / 3
Feed rates infinitely variable mm/min. 5 - 2000
Feed force N 12000
Positioning accuracy X-, Y-axis
to 1200 mm mm ± 0.075
Repeat accuracy X-, Y-axis mm ± 0.03
Positioning accuracy Z-axis mm ±
