This machine not available

Surface Grinder

Buy Used Surface Grinder from Blohm of year - 2006, Model - Planomat 612

SKU : 2405418

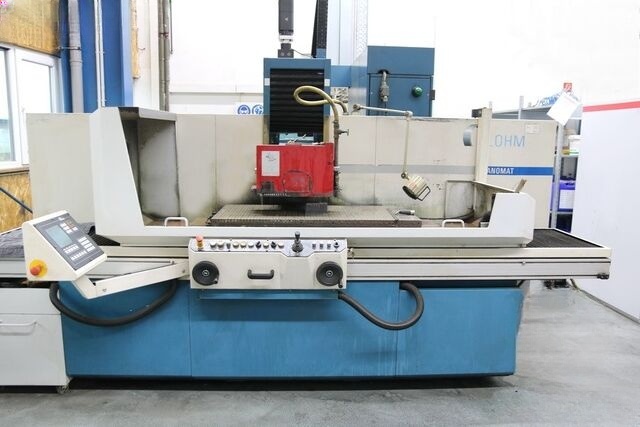

Used Blohm Surface Grinder 2006 Planomat 612

CONTACT SELLER

Machine overview

Machine Specifications

  • Length 1200 mm
  • Width 600 mm

Machine Description

  • Grinding Length 1200 mm
  • Grinding Width 600 mm
  • Workpiece Height 550 mm
  • Control Ergomatic Blohm
  • Grinding Spindle
  • Max. Spindle Speed 1,450 RPM
  • Driving Power 7.5 kW
  • Grinding Wheel Diameter (Min/Max) 190 mm / 400 mm
  • Grinding Wheel Width (Min/Max) 30 mm / 80 mm
  • Grinding Wheel Width (Standard) 50 mm
  • Grinding Wheel Hole Diameter 127 mm
  • Movement Areas
  • X-Travel 1300 mm
  • Y-Travel 550 mm
  • Z-Travel 560 mm
  • Work Table
  • Distance Grinding Spindle to Table (Min/Max) 150 mm / 700 mm
  • Table Surface Area 1200 x 600 mm
  • Table Height Over Floor 950 mm
  • Table Adjustment (Longitudinal) 1300 mm
  • Max. Table Load 800 kg
  • Feed Speeds
  • X-Axis 30 - 30,000 mm/min
  • Y-Axis 4 - 3,750 mm/min
  • Z-Axis 4 - 4,000 mm/min
  • Other Specifications
  • Weight of the Machine Approximately 5.4 tons
  • Dimensions of the Machine Approximately 5.8 x 4.5 x 2.5 m
