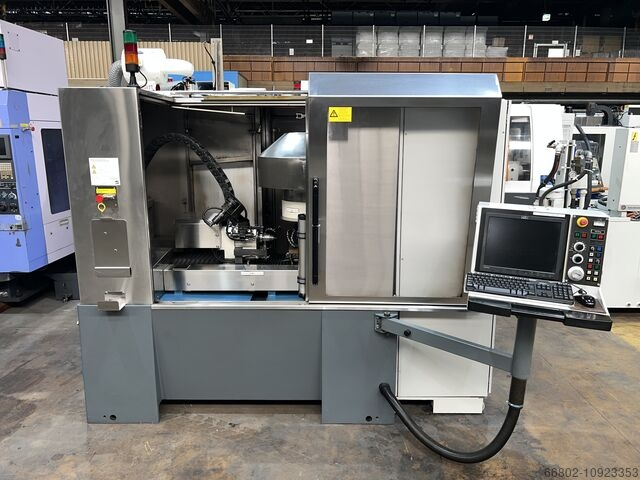

Buy Used Tool Grinder from Ewag of year - 2005, Model - Rotoline

SKU : 2308952

I am a dealer

Subscribe for similar machines

You can find the complete photo series in the PDF supplement.
TECHNICAL DATA
Connected load machine 16 kVA
Connected load coolant cleaning system 13 kVA
Frequency 50 Hz
Compressed air supply 6 bar
Min. required compressor capacity 15 Nm3/ h
Basic structure
travel 460 mm
resolution 0,0001 mm
Rapid traverse 8 m/min
Measuring system High resolution measuring system DISC NT
Travel 630 mm
resolution 0,0001 mm
rapid traverse 8 m/min
Measuring system High resolution measuring system DISC NT
Travel 190 mm
resolution 0,0001 mm
Rapid traverse 6 m/min
Measuring system High resolution measuring system DISC NT
Swivel axis B
Travel +- 200
Resolution 0,0001 mm
rapid traverse 360°/s
Measuring system Angle measuring system
Travel Infinite
Resolution 0,0001 mm
rapid traverse 800 rpm
Measuring system Encoder
W1 axis
travel 630 mm
resolution 0,0001 mm
Rapid traverse 8 m/min
Measuring system High resolution measuring system DISC NT
W2 axis
Travel 630 mm
resolution 0,0001 mm
Rapid traverse 8 m/min
Measuring system High resolution measuring system DISC NT
Grinding spindle
Spindle drive Three-phase motor, stepless
Speed 9`000 rpm
Power 9 kW
PC Num Intel P233
Control NUM 1050
For the correctness, completeness and topicality of the data we do not take over guarantee.
