This machine not available

Universal Machining Center

Buy Used Universal Machining Center from Deckel Maho of year - 2002, Model - DMC 80 U hi-dyn

SKU : 2405255

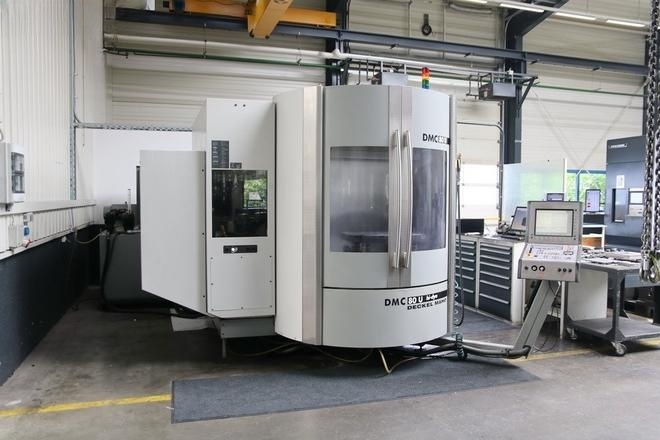

Used Deckel Maho Universal Machining Center 2002 DMC 80 U hi-dyn

CONTACT SELLER

Machine overview

Machine Specifications

  • Controller Heidenhain
  • X Travel 800 mm
  • Y Travel 700 mm
  • Z Travel 600 mm

Machine Description

  • X-Way 800mm
  • Y-Way 700mm
  • Z-Way 600mm
  • Steering iTNC 530 Heidenhain
  • Main Spindle
  • Speed Range - Main Spindle max. 18,000 min/-1
  • Drive Power - Main Spindle 19/28 kW
  • Max. Torque 121 Nm
  • Tool Holder SK 40 DIN 69871
  • B Axis 0.001°
  • Pallet Changer
  • Number Of Pallets 2
  • Pallet Size 800x630mm
  • Pallet Diameter Ø 800mm
  • Max. Table Load 800 / (1,600) kg
  • Rotatable C 360°
  • Resolution 0.001°
  • Max. Table Speed 13.6 rpm
  • T-Slots 50 H6
  • Tool Magazine
  • Number Of Tool Slots 60 pos.
  • Max. Tool Diameter 100mm
  • Max. Tool Diameter With A Free Neighboring Box 160mm
  • Max. Tool Length 350/315mm
  • Max. Tool Weight 10kg
  • Feeds
  • Feed Rate 20 - 15,000 mm/min
  • Rapid Traverse 50 m/min
  • Total Power Requirement 59 kVA
  • Machine Weight Approx. 10 tons
  • Space Requirement Approx. 4.0 x 7.0 x 2.7 meters
