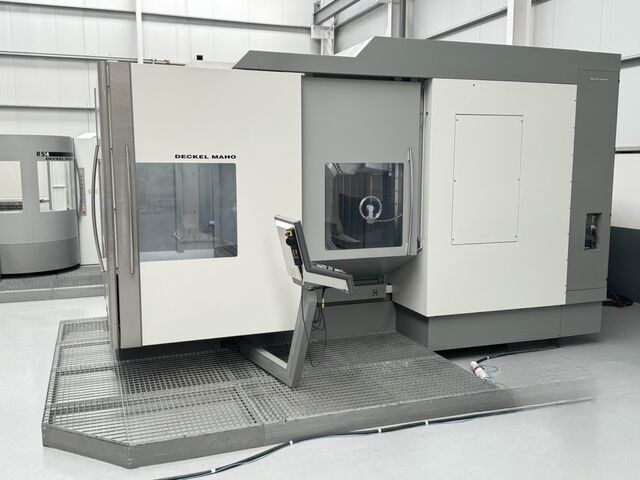

Buy Used Universal Machining Center from Dmg Mori of year - 2002, Model - DMU 160 P

SKU : 2405403

I am a dealer

Subscribe for similar machines

X-Travel 1600 mm
Y-Travel 1250 mm
Z-Travel 1000 mm
Control HEIDENHAIN TNCi 530
Tool Taper HSK-A63
Spindle Turning Speed Range Up to 18000 rpm
Table Dimensions
Cross 1250 mm
Longitudinal 1500 mm
Rapid Traverse 60 m/min
Feed Rate 20-15000 mm/min
Maximum Workpiece Weight 4000 kg
Table Turning Speeds 10 U/min
Tool Changer 60 positions
Handwheel Electronic
Machine Usage
Machine On 49248 hours
Spindle Hours 13157 hours
Total Power Requirement Not specified
Weight of the Machine Approximately 34 tons
Dimensions of the Machine Approximately 8800 x 8800 x 3500 mm
Additional Features
Very good condition, available for inspection under power at the seller's premises
Primarily used for milling plastic and aluminum
Spindle HSK63 with 18,000 1/min, approximately 1,000 hours of use
Minimum lubrication system inside/outside
Blowing air inside/outside
Coolant from the outside
Measuring probe Heidenhain
Operating mode 4
Tool change unit and Z-curtain replaced in 2022
