This machine not available

Universal Machining Center

Buy Used Universal Machining Center from SCHWABISCHE of year - 2010, Model - BA 400

SKU : 2310703

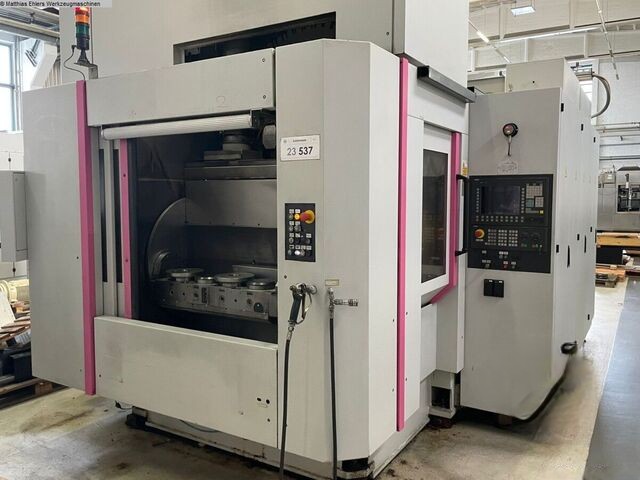

Used SCHWABISCHE Universal Machining Center 2010 BA 400

CONTACT SELLER

Machine overview

Machine Specifications

  • Controller Siemens
  • X Travel 400 mm
  • Y Travel 400 mm
  • Z Travel 400 mm

Machine Description

  • X-Travel 400 mm
  • Y-Travel 400 mm
  • Z-Travel 400 mm
  • Control Siemens 840D
  • Number of Boring Spindles 2
  • Spindle Distance 400 mm
  • Spindle Turning Speed Range 50 - 10,000 RPM
  • Spindle Drive 18 kW
  • Number of Working Hours Approximately 63,015 hours
  • Spindle Hours Approximately 32,870 hours
  • Number of Tables 1
  • Number of Clamping Positions 4
  • Maximum Workpiece Weight 450 kg
  • Tool Magazine
  • Number of Tool Places 60 (expandable to 120)
  • Tool Taper HSK A63
  • Maximum Tool Diameter 70 mm
  • Maximum Tool Length 300 mm
  • Maximum Tool Weight 10 kg
  • Tool Change Time (Chip to Chip) 4.5 seconds
  • Total Power Requirement 88 kVA
  • Feed Power 9,250 N
  • Rapid Traverse (X / Y / Z) 1 - 40,000 mm/min
  • Machine Weight Approximately 13.8 tons
  • Machine Dimensions Approximately 6.35m x 4.50m x 3.50m (L x B x H)
  • Spindle Diameter 80 mm
