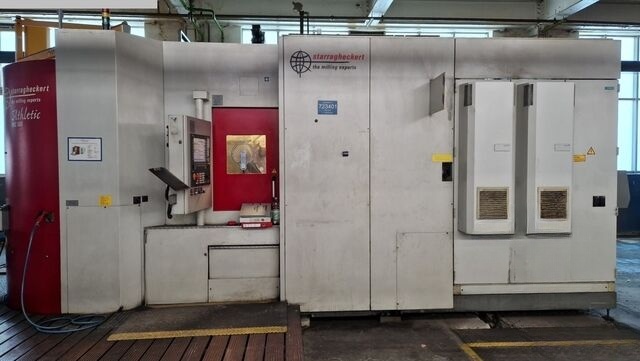

Buy Used Universal Machining Center from Starrag Heckert of year - 2008, Model - HEC 500 H

SKU : 2405489

I am a dealer

Subscribe for similar machines

X-Travel 900 mm
Y-Travel 770 mm
Z-Travel 1000 mm
Control System Siemens 840D
Spindle and Tooling
Tool Taper SK 50
Spindle Turning Speed Range 20 - 6000 rpm
Motor Power (60% ED) 30 kW
Max. Torque on Spindle (60% ED) 1080 Nm
Speed and Efficiency
Rapid Travel (X/Y/Z) 60 m/min
Pallet and Workholding
Pallet Size 630 x 500 mm
Pallet Changer 2-station
NC-Rotary Table 360°
Additional Features
Portable Handwheel Allows for manual control and positioning.
Autom. Horizontal-Vertical Milling Head Enhances versatility for various machining tasks.
Automatic Tool Changer (ATC) 60-station for efficient tool changes.
Coolant Equipment Includes a paper band filter and coolant through spindle at 80 bar for effective cooling during machining operations.
Oil Cooler Ensures optimal temperature control for extended machine longevity.
Chip Conveyor Facilitates efficient removal of machining waste for a clean working environment.
Machine Weight and Dimension
Weight of the Machine Approximately 21.0 t
