This machine not available

Universal Machining centers - 5 Axis

Buy Used Universal Machining centers - 5 Axis from AXA of year - 2005, Model - VHC-3-3000-S

SKU : 2406455

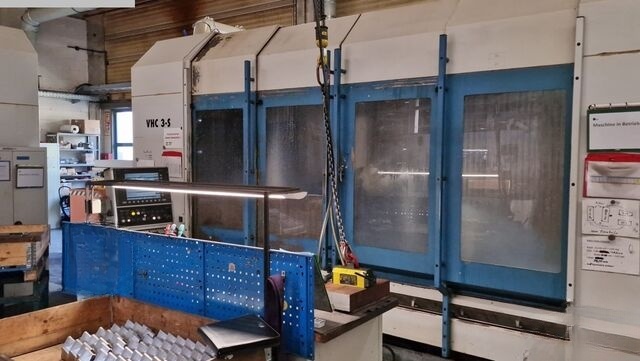

Used AXA Universal Machining centers - 5 Axis 2005 VHC-3-3000-S

CONTACT SELLER

Machine overview

Machine Specifications

  • Controller Siemens
  • X Travel 2940 mm
  • Y Travel 700 mm
  • Z Travel 850 mm

Machine Description

  • X-Travel 2940 mm
  • Y-Travel 700 mm
  • Z-Travel 850 mm
  • Table Size 3400 x 750 mm
  • Control System Siemens 840 D
  • Total Power Requirement 75 kVA
  • Weight of the Machine Approximately 16.5 tons
  • Technical Specifications
  • Traverse (X/Y/Z) 2940 x 700 x 850 mm
  • Pendulum Stroke
  • Vertical spindle left/right 1170 mm / 1170 mm
  • Spindle Speeds 30 - 6000 rpm
  • Spindle Motor
  • AC hollow shaft motor, 45 kW at 40% ED
  • Max. Torque 286 Nm at 40% ED
  • Tool Holder SK 50
  • Equipment
  • CNC Control Siemens 840 D
  • CNC Swivel Milling Head
  • Infinitely variable positioning from X (-) 90 to X (+) 90 degrees
  • Locking via Hirth toothing
  • Tapping without compensating chuck
  • CNC Rotary Table Type RTA 3-630
  • Faceplate can be used vertically/horizontally
  • Diameter 630 mm, center height 330 mm
  • Max. Load
  • Vertical 1500 kg
  • Horizontal 500 kg
  • Speed
  • Rapid Traverse 8 1/min
  • Continuous Speed 2 1/min
  • Measuring System Heidenhain direct linear
  • Tool Changer 26 tool places
  • Chip Conveyor
  • Coolant System
  • High-pressure pump
  • Belt filter system
  • Space Requirements
  • Machine Length 5800 mm (+ 1700 mm with chip conveyor)
  • Machine Width 3300 mm (plus control panel)
  • Machine Height 3200 mm
