This machine not available

Universal Machining centers - 5 Axis

Buy Used Universal Machining centers - 5 Axis from Deckel Maho of year - 2008, Model - DMC 160 FD duoBLOCK

SKU : 240665

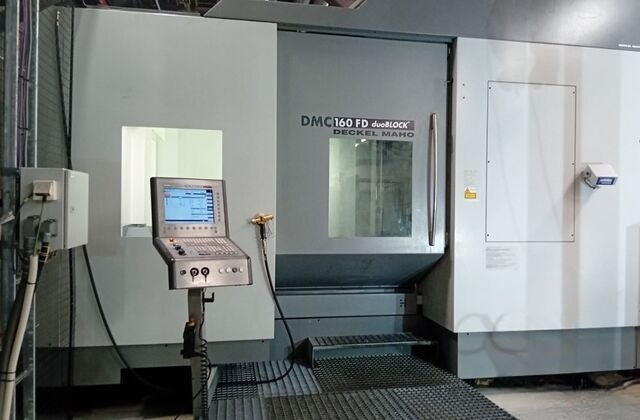

Used Deckel Maho Universal Machining centers - 5 Axis 2008 DMC 160 FD duoBLOCK

CONTACT SELLER

Machine overview

Machine Specifications

  • Controller Siemens
  • X Travel 1650 mm
  • Y Travel 1250 mm
  • Z Travel 1000 mm

Machine Description

  • CNC controller Siemens 840D-Powerline
  • X-axis travel mm 1650
  • Y-axis travel mm 1250
  • Z-axis travel mm 1000
  • C-axis degrees 360º (0,001)
  • B-axis degrees 0-190º
  • Feed rates m/min 60
  • Rapid traverse m/min 60
  • Milling/turning table nc
  • Number of pallets 2
  • Table dimensions mm Ø1400
  • Max. workpiece weight kg 3000
  • Table rotation speed rpm 6300
  • max. torque Nm 4160
  • Spindle speed rpm 10000
  • Spindle drive power kW 44/32(40%ED/cont)
  • Spindle torque Nm 288/187
  • Cooling through the Spindle Center bar 40
  • Tank capacity 980
  • Tool system
  • Tool holder HSK-A 100
  • Tool magazine slots 180
  • Chip-to-chip time s 7
  • Electronic Handwheel
  • Chip conveyor
  • Infrared probe
  • Rinsing gun
  • Operating mode 4
  • blowing air through spindle center selectable via M-function
  • Signal lamp
  • Tool breakage probe
  • Mist collector
  • Preparation for the use of the 3D quickSET
  • Laser tool measurement for measuring tool length and diameter
  • Spindle active cooling unit
  • MPC – Machine Protection Control
  • Temperature compensation
  • Paper band filter
  • Machine running times
  • Under power 51495
  • Spindle Working 30882
  • Rated power kVA 122
  • Basic machine dimensions / weight
  • Length mm 6634
  • Width mm 8900
  • Height mm 3500
  • Weight kg 3500
