Home
Metal Cutting
Universal Machining centers - 5 Axis
Matec
30 HVK
This machine not available
Universal Machining centers - 5 Axis

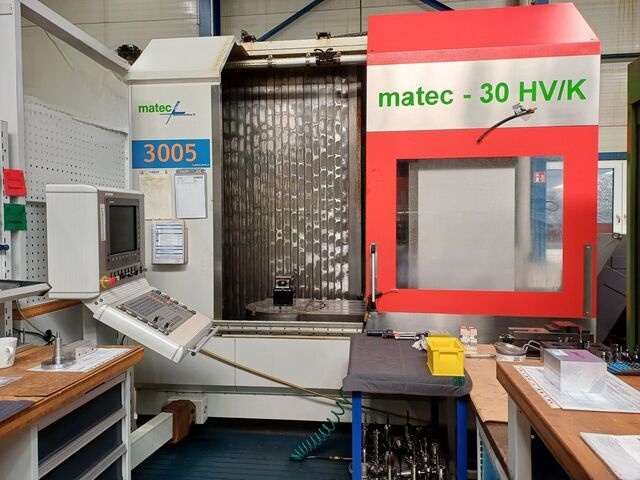

Buy Used Universal Machining centers - 5 Axis from Matec of year - 2007, Model - 30 HVK
SKU : 2404630
CONTACT SELLER
Hello, Your machine Matec - Universal Machining centers - 5 Axis listed on Zatpatmachines.com. I am interested in buying it. I'm looking forward to your offer. Kind regards
I am a dealer
Subscribe for similar machines
SEND REQUEST
Privacy Statement
Machine
overview
Type
Universal Machining centers - 5 Axis
Category
Metal Cutting
Brand
Matec
Year
2007
Condition
Used
Location
Germany
Machine
Specifications
Controller
Heidenhain
X Travel
1500 mm
Y Travel
800 mm
Z Travel
1100 mm
Machine
Description
Control
HEIDENHAIN iTNC 530
Storage location
Halberstadt
X-Travel
1500 mm
Y-Travel
800 mm
Z-Travel
1100 mm
C-Axis
0,001 °
Distance Spindle /Table
0 - 975 mm
Max. rotary table diameter
630 O
Tool Taper
HSK - 63A
Tool Piece Magazine With
46 Pcs./pcs.
Spindle Turning Speed - Stepless
0 - 15.000 RPM
Max. Torque
190 Nm
Rapid Traverse
30 (48/100) m / min
Drive Capacity - Spindle Motor
30 kW
Weight Of The Machine Ca.
15 t
Further information
Simultaneous machining possible (5 axes)
Chip conveyor
Measuring probe
IKZ (internal cooling)
C - axis table Ø630 mm
B-axis +/- 105 degrees (0.001° indexing)
Measuring system for all axes
Inspection - renewals
July 2019 - Major machine overhaul worth over 80,000 euros
Replacement of the rotary feed-through (DDF) and the Kessler swivel head spindle (B-axis)
Replacement of the Z-rails including guide shoes and Z-KGT including bearings and belts
Replacement of the Y-rails incl. guide shoes incl. screws
Replacement of the Y-KGT incl. bearings and coupling incl. screws
Replacement of the X-guide shoes incl. screws, replacement of the X-KGT incl. ball screw with nut, belt, screws and bearings
Replacement of all pneumatic and hydraulic hoses
Replacement of all pots in the tool magazine
DU bushes and wipers from the tool changer replaced
July 2022
Retrofitting of KinematicOpt - activation
February 2024
Mechanical alignment of the geometry, grinding of the spindle taper and readjustment of the kinematics.
Laser measurement and fine correction of axes and angularity.
Machine can be inspected under power.
