Vertical Machining Center ( VMC )

Buy Used Vertical Machining Center ( VMC ) from COMU of year - 2006, Model - CLV 1100

SKU : 2404853

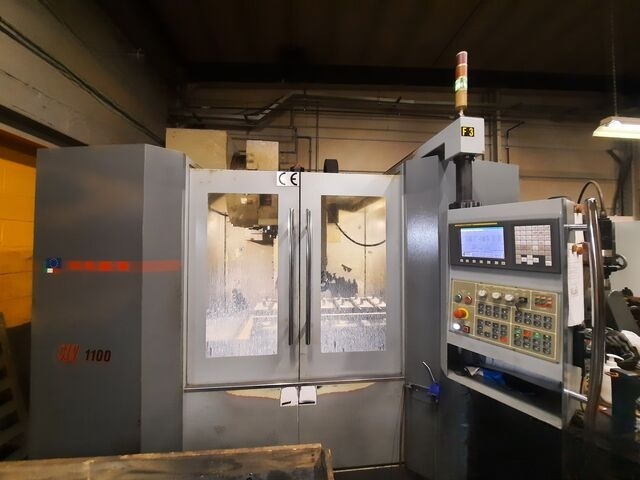

Used COMU Vertical Machining Center ( VMC ) 2006 CLV 1100

CONTACT SELLER

I am a dealer

Subscribe for similar machines

Privacy Statement

Machine overview

Type Vertical Machining Center ( VMC )

Category Metal Cutting

Brand COMU
Year 2006

Condition Used

Location Belgium

Machine Specifications

Controller Fanuc
X Travel 1100 mm
Y Travel 650 mm
No of Axis 3

Machine Description

Table surface 1300 x 600 mm
Travel X 1100 mm
Travel Y 650 mm
Travel Z 600 mm
Working speed X-Y-Z 1-8000 mm/min
Table height 900 mm
Control FANUC Oi-MC
Maximum permitted weight 800 kg
Minimum distance from the spindle nose to the table 140 mm
Maximum distance from spindle nose to table 740 mm
Distance from spindle axis to stand 700 mm
Spindle taper BT 40
Spindle diameter 75mm
Maximum spindle speed 10000 rpm
Compressed air connection 6 bar
Total power 25 kW
Number of tools 24
Maximum weight per tool 6kg
Length 3000mm
Depth 3100mm
Height 3100mm
Weight 8000kg
