This machine not available

Vertical Machining Center ( VMC )

Buy Used Vertical Machining Center ( VMC ) from Deckel Maho of year - 2006, Model - DMU 125 P duoBLOCK

SKU : 2405122

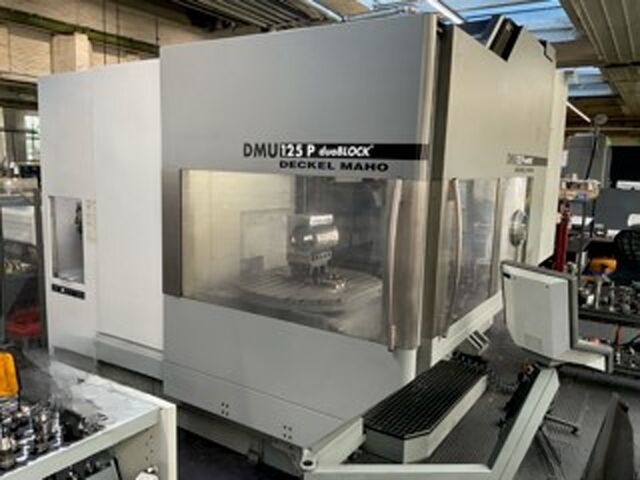

Used Deckel Maho Vertical Machining Center ( VMC ) 2006 DMU 125 P duoBLOCK

CONTACT SELLER

Machine overview

Machine Specifications

  • Controller Heidenhain
  • X Travel 1250 mm
  • Y Travel 1000 mm

Machine Description

  • CNC Controller HEIDENHAIN iTNC-530
  • Travel
  • X-axis 1250 mm
  • Y-axis 1000 mm
  • Z-axis 1000 mm
  • C-axis 360° (0.001°)
  • B-axis 0-190° (0.001°)
  • Feed Rates
  • Feed rates 60 m/min
  • Rapid traverse 60 m/min
  • Milling/Turning Table
  • Number of pallets 1
  • Table dimensions Ø1250x1100 mm
  • Max. workpiece weight 2500 kg
  • Table rotation speed 30 rpm
  • Spindle
  • Spindle speed 10000 rpm
  • Spindle drive power 44/32 kW (40%ED/cont)
  • Spindle torque 288/187 Nm
  • Cooling through the spindle center 40 bar
  • Tool System
  • Tool magazine slots SK50
  • Tool changer 60
  • Chip-to-chip time 4.5 s
  • Additional Features
  • Electronic Handwheel
  • Chip conveyor
  • Infrared probe
  • Rotating inspection windows
  • Rinsing gun
  • Operating mode 4
  • Blowing air through spindle center selectable via M-function
  • 3D quickSET
  • Paper band filter
  • Machine Operating Times
  • Under voltage 58675 hours
  • Head work 16415 hours
  • Electrical Specifications
  • Rated power 86 kVA
  • Machine Dimensions/Weight
  • Length 4539 mm
  • Width 5228 mm
  • Height 3427 mm
  • Weight 17300 kg
