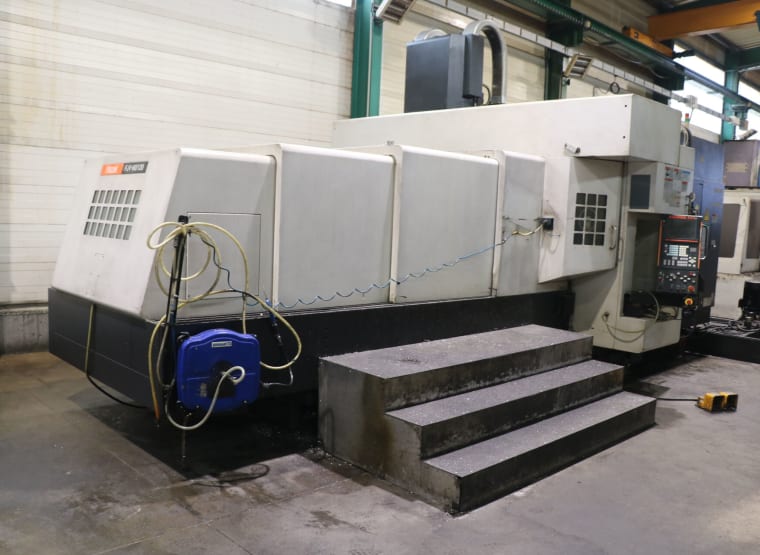

Capacity
Table working surface 1250x3000 mm
Table longitudinal travel X-axis 3200 mm
Spindle head cross travel Y-axis 1400 mm Spindle head vertical travel Z-axis: 585 mm
Spindle nose to table top surface min. 200 mm - max. 785 mm
Distance between columns (inside of columns) 1480 mm
Max. load on table; 5000 kg
Max. drilling capacity (for S45C) Ø 50 mm
Max. tapping capacty (for S45C) M45 x P4.0
Max. milling capacity (for S45C) 360 cm3xmin
Spindle
Spindle head vertical Z-axis 585 mm
Spindle nose ISO No. 50
Spindle speed
Standard min-1 22-6000 (Command by 4-digit S-code number in 1 min-1 increments)
Spindle motor AC inverter motor, 30 min. rating : 26, Cont. rating: 22
Table Table size: 1250x3000 mm
T-slot Size (ISOR299): 22 mm
number of T-slots 9
Pitch 140 mm
Reference slot (center slot) 22H8 +0,0033/0
Max. load on table(load uniformly distributed) 49 kg
Table height from machine bottom 850 mm
ATC
Tool storage capacity 60
Tool selection Coded magazine pocket random selection by shortest path
Tool shank type MAS BT-50
Max. tool diameter(with adjacent tools removed) Ø125 (Ø210) mm
Max. tool mass (incl. shank and retention knob) 20 kg
Total tool mass 330 kg
Max. tool length (incl. shank and retention knob) 507 mm
Tool change time (on chip- to-chip basis) 9,8 (MAS) s
Acuracy
Uni-directional postioning (using stored pitch error compensation) X-, Y-axis: +/- 0,0025/1000, Z-Axis: +/- 0,0025/full travel
Uni-directional repeatability X-, Y-, Z-axis 0,001 mm
Machine dimension
Machine height from machine bottom 3526 mm
Floor space (without chip conveyor) 4101x8100 mm
Machine mass 27000 kg
Required power Electricity: Voltage 200/220 +/- 10%, 3-phase
Frequency 50/60 +/- 1
Power supply (26 kw) (Standard) 55,4 (Cont. rating), 59,4 (30 min. rating)
Primary service cable 80mm²
Earth cable 38mm²
Air source Air pressure 0,5 MPa
Air capacity 650 l/min (ANR)
