x-travel 3200 mm
y-travel 550 mm
z-travel 590 mm
control Heidenhain iTNC 530
tool taper SK 40
range of revolutions per minute - continous 100 - 6000 U/min
rapid travel range x-y-z: 50-25-25 m/min
feed speed 0 - 5000 mm/min
operating hours - idle run approx. / ca. 6529 h
program running time approx./ ca. 2160 h
interface 232 - C
operating pressure 7 bar
connection electric 3x400V / 50 Hz Hz/V
total power requirement 15 kVA
weight of the machine ca. 7,5 t
dimensions of machine L:6,0xB:2,3xH:2,5 m m
space requirements approx. LxWxH 6,0 x 4,50 x 2,9 (30m²) m
Application Drilling, countersinking, reaming, thread cutting and milling of metal+aluminium+plastic+wood
- cast mineral bed
- with coolant device (300 litre tank)
- travel measuring system rotary encoder/ longitudinal measuring system
- drives x-axis ((50m/min) via rack and pinion and y-axis, z-axis (25m/min) via ball bearing spindle
- Heidenhain path control
- control panel
- electronic handwheel
- central lubrication manually operated
further technical information
- workpiece clamping by means of clamping supports (approx. 15 beams)
- hydraulic tool change via control system
- 4x chip drawers
- various clamping devices, clamping elements
- protection grid (security fence)
- measuring device make Knut
Machine is located in Leipzig and can be demonstrated under power.

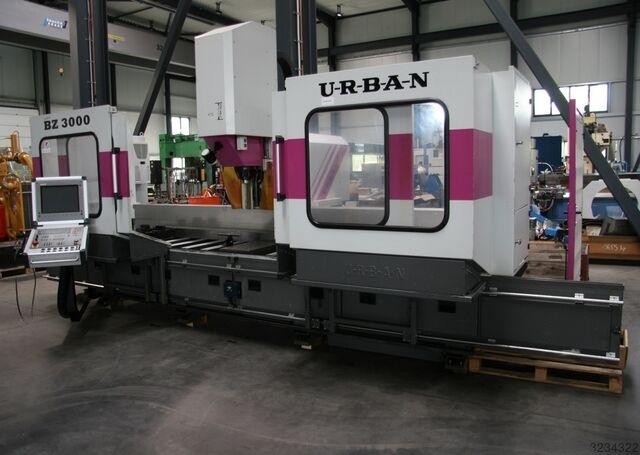

Make BZ 3000
