VTL

Buy Used VTL from CKD Blansko of year - 1992, Model - SKD 50 B CNC

SKU : 2303571

I am a dealer

Subscribe for similar machines

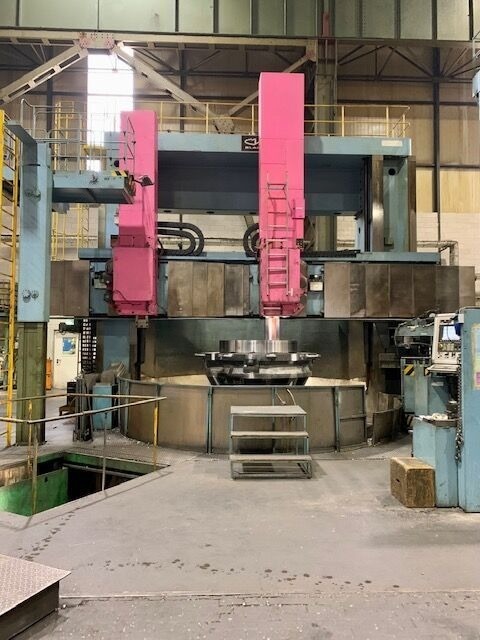

Vertical Turret Lathe - Double Column with boring and milling unit and grinding device / Brand CKD-BLANSKO / Type: SKD 50 B-CNC /
Caahwicpie
Year of construction 1992, Retrofit/Modernization: 2011 ((Electrical and mechanical overhaul/modernisation)
The machine can be inspected by appointment under working condition.
Condition Functional / ready for immediate use.
TECHNICAL SPECIFICATIONS
- CNC Control SINUMERIK 840D SL
Working area
- Faceplate diameter 4.770 mm
- Swing diameter 5.300 mm
- Turning height max. 4.000 mm / max. height without tools: 4.130 mm
- Table load max. 100 tons
- Z-axis (RAM) 1.950 mm
Crossbeam
- Travel 3.600 mm
- Adjustment speed 500 mm/min
Pick-up Magazine
- 8 Tool holder positions
- Automatic clamping of the tool holder in the ram
- 1 straight boring head
- 1 Angle head, 90°(not in pick-up)
- Machine weight approx. 110 tons
There is no guarantee for correctness and completeness of the technical details and accessories.
Detailed technical data sheet and information on equipment available
on request.
