Buy Used VTL from Doosan of year - 2002, Model - Puma V-1200M

SKU : 2506331

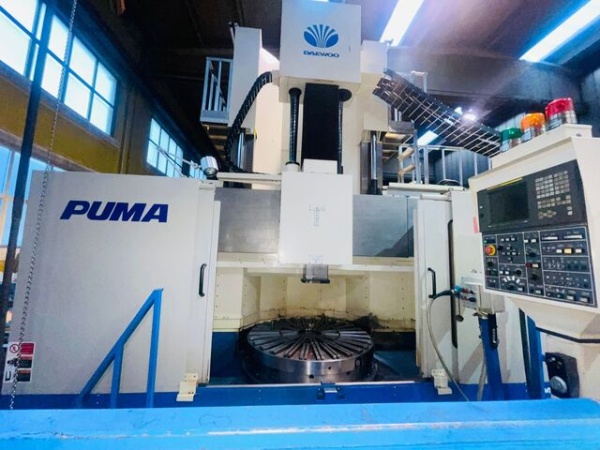

Used Doosan VTL 2002 Puma V-1200M

Price : RFQ

CONTACT SELLER

Machine overview

Machine Specifications

  • Controller Fanuc 18i-T
  • Diameter 1200 mm
  • Height 1200 mm
  • Swing 1600 mm

Machine Description

  • CNC Vertical Lathe
  • Turning Capacity
  • Maximum Swing / Turning Diameter Ø1600 mm
  • Maximum Turning Height 1200 mm
  • Maximum Workpiece Weight 6000 kg
  • Chuck Diameter Ø1200 mm
  • Axes Travel
  • X-Axis Travel 1200 mm
  • Z-Axis Travel 900 mm
  • C-Axis 360° rotation, 0.001° min. increment
  • Main Spindle
  • Speed Range 2–320 rpm (2-speed range)
  • Power 37/45 kW
  • RAM Driven Spindle
  • Spindle Taper ISO 50
  • Speed 15–1500 rpm
  • RAM Section 240 x 240 mm
  • Tool Turret
  • Tool Stations 16
  • Tool Type BT-50
  • Max. Tool Diameter Ø400 mm
  • Max. Tool Length 450 mm
  • Max. Tool Weight 50 kg
  • Max. Tool Weight in Magazine 600 kg
  • Feed Rates
  • Rapid Traverse X/Z 10,000 mm/min
  • Cutting Feed X/Z 3,000 mm/min
  • Included Equipment
  • Chip Conveyor
  • Coolant Tank with Pumps
  • Spindle Line Air Conditioner
  • Assorted Tool Holders (Fixed & Driven)
  • Manuals, Electrical Diagrams, CE Declaration
