Industrial Chiller

Buy New Industrial Chiller from Rayzon, Model - HL-6000-QG2-2-H

SKU : 250759

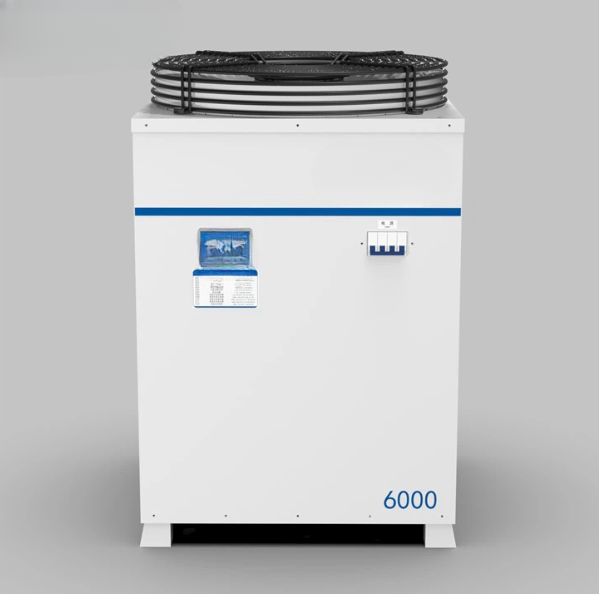

New Rayzon Industrial Chiller HL-6000-QG2-2-H

Price : ₹175,000

CONTACT SELLER

Machine overview

Machine Specifications

    Machine Description

    • Voltage & Frequency 3P 380V / 60Hz
    • Maximum Current 14.5A
    • Rated Power 11.0 kW
    • Horsepower 5 HP
    • Compressor Power 4.04 kW
    • Filteration Stainless Steel 16 nos Mesh
    • Electric Heating Power 1.25 + 1.25 kW
    • Pump Power 1.0 kW
    • Fan Power 0.75 kW
    • Maximum Air Volume of the Fan 8450 m³/h
    • Low Temperature End
    • Rated Flow 60~66 L/min
    • Rated Pressure 4.0 bar
    • Maximum Pressure 6.0 bar
    • Interface Dimensions Φ37.5×48 – Φ25 mm Pagoda Joints
    • Water Temperature Setting Range 21–32℃
    • High Temperature End
    • Rated Flow 2.0 L/min
    • Rated Pressure 3.5 bar
    • Interface Dimensions Φ37.5×48 – Φ13 mm Pagoda Joints
    • Water Temperature Setting Range 26–35℃
    • Water Temperature Control Accuracy ±1℃
    • Water Tank Capacity 38 L
    • Application Environment 5–40℃
    • Coolant R410A
    • Noise Level ≈75 dB(A)
    • Net Weight 90 kg
    • Gross Weight 102 kg
    • Machine Dimensions (L×W×H) 665 × 610 × 920 mm
    • Packing Dimensions (L×W×H) 710 × 670 × 1090 mm
    • Suitable Cooling Medium Pure Water, Glycol Solution (≤30% Concentration)
