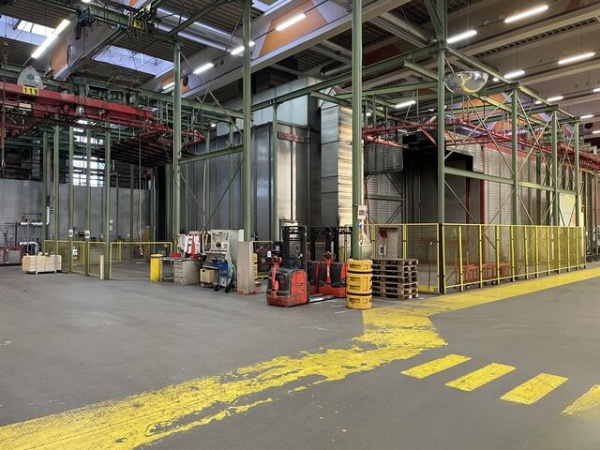

Powder Coating Plant

Buy Used Powder Coating Plant from Eisenmann of year - 2006, Model - Wagner

SKU : 250498

I am a dealer

Subscribe for similar machines

Pre-Treatment & Powder Coating Plant
Building Size 120 m × 42 m
Hanger Envelope Size 5200 mm (L) × 400 mm (W) × 3000 mm (H)
Hanger Load Capacity 1000 kg (Steel Parts)
Pre-Treatment Process
11-zone spray pre-treatment with heat exchangers and nozzle holders
Degreasing 1 + 2
Degreasing 3 + Rinsing 1
Rinsing 2 + Activation
Zinc Phosphating
Rinsing 3
Passivation
Rinsing 4 + 5
Stainless steel finishing, Max part size 5000 mm (L) × 3000 mm (H) × 650 mm (D), Max load: 1000 kg
Powder Coating Cabins (WAGNER)
2× Automatic Cabins with 2 lifting devices and 24 automatic powder pistols
2× Manual Coating Lines (Pre & Post Coating)
Herding Filter Machine and Cyclone Compatible
CO2 Fire Extinguisher Installed
Conveyor System – Power & Free
Circular Chain Length ~500 m
Chain Split 500 mm
Load Capacity 1000 kg
2 Lubrication Stations
Crane Stations for Loading/Unloading
Separate Station for Oversized Parts (Bypass Pre-Treatment)
