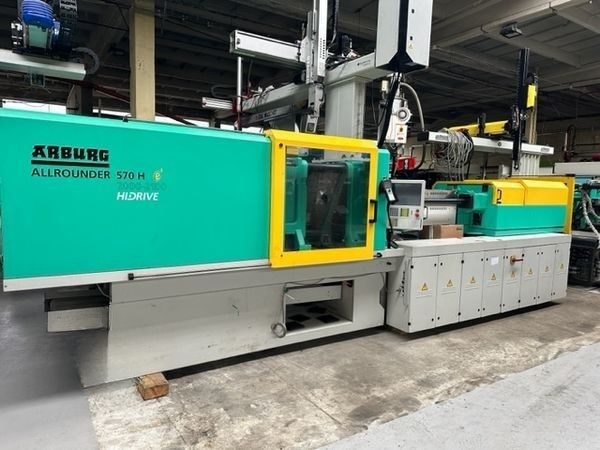

Buy Used Injection Moulding Machine from Arburg of year - 2010, Model - 570H 2000-2100

SKU : 240521

I am a dealer

Subscribe for similar machines

Injection Unit
Screw diameter 70 mm
Injection weight 984 g
Injection pressure 2000 bar
Dosing volume 1078 ccm
Clamping Unit
Clamping force 200 t
Distance between tie bars 570x570 mm
Size of the clamping platens 795x795 mm
Ejector hydraulic
Clamping unit toggle lever
Control System
SELOGICA - touch screen
Euromap 67
Robot interface
Air valve x 2
Hydraulic core pull x 1
Air core pull x 7
Control unit with hot runners x 15
Hardened injection unit - Bimetal
Main machine motor - Servomotor driven by inverter - Energy saving
Automatic mold height adjustment
Machine with two cylinders / battery with compressed nitrogen (additional charge for fast work)
Built-in Arburg conveyor belt integrated with the machine control system
Robot Sepro Industrial Robot SDR 22S:
4-axis robot 3 axes are driven by servomotors (electric); axis C - pneumatic
Travel in axes X-1500, Y-2200, Z-800
Vacuum x 2
Gripper x 2
Touch control panel
Robot with adapter
Additional Information
Machine in very good technical condition
Hybrid machine high-speed, energy-saving, and very quiet
Operating hours approx. 29,000 h in automatic mode
Purchase of the robot for an additional charge
Weight 12390 kg
Length/width/height 7.20x1.77x2.32 m
Pumps/motor 0 kW
Heating output 0 kW
Total output 0 kW
