Injection Moulding Machine

Buy Used Injection Moulding Machine from Demag of year - 2005, Model - Ergotech System 110-470 - 430

SKU : 250757

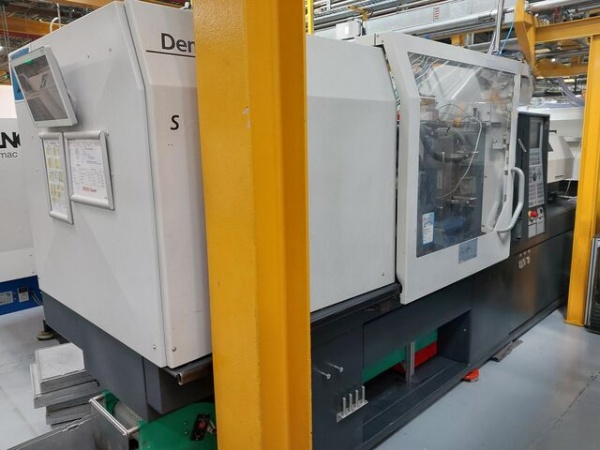

Used Demag Injection Moulding Machine 2005 Ergotech System 110-470 - 430

Price : €3,200

CONTACT SELLER

Machine overview

Machine Specifications

  • Clamping Force 110 Ton
  • Screw Dia. 40 mm
  • Shot Weight 205 Gram

Machine Description

  • Injection Unit 430 B
  • Screw Diameter 40 mm
  • L/D Ratio 20
  • Displacement Volume 231.2 cm³
  • Injection Pressure 2020 bar
  • Injection Weight (PS) 205 g
  • Max Metering Stroke 184 mm
  • Max Screw Speed 300 rpm
  • Plasticising Rate (PS) ~28 g/s
  • Nozzle Stroke 300 mm
  • Nozzle Dipping Depth 40 mm
  • Nozzle Sealing Force 60 kN
  • Nozzle Contact Force 30 kN
  • Heating Capacity (Screw Cylinder) 11.1 kW
  • Heating Capacity 6.4 kW
  • Number of Injections 1
  • Clamping Unit
  • Clamping Force 1100 kN (110 Ton)
  • Locking Force 1100 kN
  • Tie Bar Distance (H × V) 470 × 470 mm
  • Min. Mold Height 250 mm
  • Daylight Opening 950 mm
  • Mold Opening Stroke 600 mm
  • Max Mold Weight 1000 kg
  • Platen Size (L × W) 670 × 670 mm
  • Ejector System
  • Ejector Stroke 180 mm
  • Ejector Force 41.2 kN
  • Ejector Retraction Force 14.8 kN
  • Hydraulic System
  • Oil Tank Capacity 220 L
  • Pump Power 30 kW
  • Total Installed Power 41.1 kW
  • Machine Dimensions & Weight
  • Machine Dimensions (L × W × H) 4700 × 1500 × 2000 mm
  • Installation Height 2000 mm
  • Machine Weight 5650 kg
  • Electrical
  • Input Voltage 400 V
  • Type of Current Three-Phase
  • Equipment
  • CE Marking
  • Documentation / Manual
