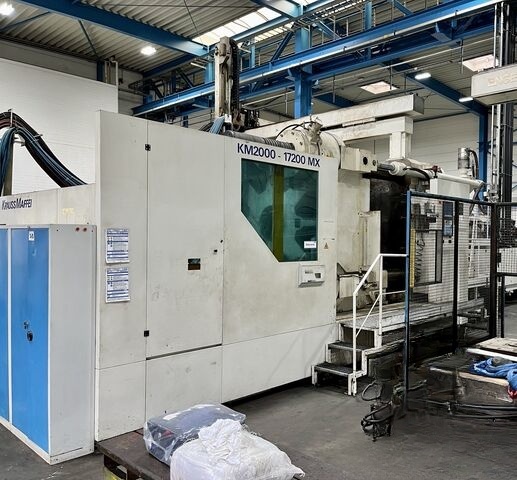

Buy Used Injection Moulding Machine from Krauss Maffei of year - 2007, Model - KM 2000-17200 MX

SKU : 2405148

I am a dealer

Subscribe for similar machines

Closing Unit
Mold closing force 2000 Ton
Mold opening force 1,400 kN
Clamping plate dimensions (H x V) 2650 x 2400 mm
Clearance between columns (H x V) 1870 x 1620 mm
Mold opening stroke 2800 mm
Mold height (min-max) 800 - 1700 mm
Opening width 3600 mm
Ejector stroke 400 mm
Ejector force 400/200 kN
Injection Unit
Screw diameter 150 mm
Ls/D ratio 23.0
Injection pressure 1445 bar
Injection volume 11928 cm3
Injection weight 8469 g
Injection speed 90 mm/s
Injection capacity 1592 cm3/s
Screw speed (standard) 110 rpm
Plasticization capacity
At standard screw speed 250 g/s
Electro-Hydraulic Equipment
Rated power of pump motor 160 kW
Installed power of heaters 109 kW
Number of heating zones of the cylinder 7 (+ special extended nozzle contains heating tape and thermocouple)
Dry cycle time / stroke according to Euromap 6 7.0 s / 1309 mm
Oil tank capacity 2400 dm3
Weight and Dimensions
Net weight with control cabinet 111 t
Dimensions of foundation space (L x W x H) 14.75 x 4.10 x 3.41 m
