This machine not available

Injection Moulding Machine

Buy Used Injection Moulding Machine from Krauss Maffei of year - 2006, Model - KM 350 - 2700 C2

SKU : 2312416

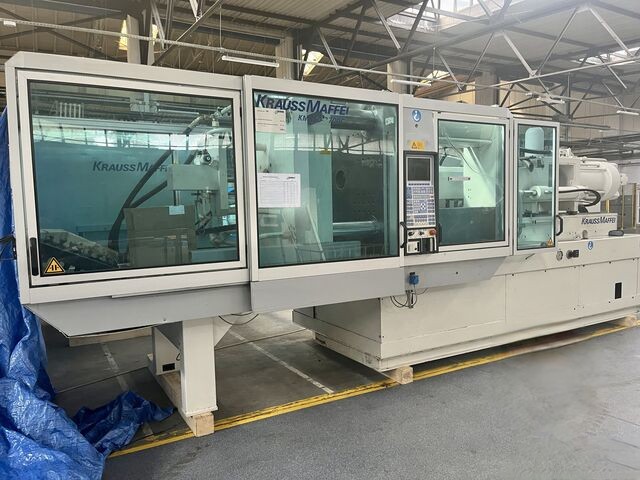

Used Krauss Maffei Injection Moulding Machine 2006 KM 350 - 2700 C2

CONTACT SELLER

Machine overview

Machine Specifications

  • Clamping Force 390 Ton
  • Screw Dia. 80 mm
  • Shot Weight 1304 Gram

Machine Description

  • Closing Force 3500 kN
  • Max Mold Opening Force 220 kN
  • Moving Plate Opening Force 105 kN
  • Moving Plate Closing Force 95 kN
  • Size of Mold Plates (H x V) 1060 mm x 1095 mm
  • Distance Between Columns (H x V) 710 mm x 710 mm
  • Mold Opening Stroke 920 mm
  • Min Mold Height 380 mm
  • Max Daylight 1300 mm
  • Hydraulic Ejector Stroke 250 mm
  • Forward/Reverse Ejector Force 95 / 48 kN
  • Screw Diameter 80 mm
  • Ls/D Ratio 20
  • Injection Pressure 1829 bar
  • Displacement Volume 1433 ccm
  • Injection Weight (PS) 1304 g
  • Injection Speed 513 ccm/s
  • Screw Speed 218 1/min
  • Max Plasticization Rate 108 g/s
  • Nozzle Pressure 173 kN
  • Nominal Pump Motor Capacity 75 kW
  • Installed Heating Power 36 kW
  • Adjustable Barrel Heating Zones 7
  • Tank Capacity 720 ltr.
  • Dimensions and Weight
  • Machine Dimensions 6.91 m x 2.20 m x 2.41 m
  • Total Weight of the Machine 15,300 kg
  • Maximum Mold Weight 4,780 kg
