Injection Moulding Machine

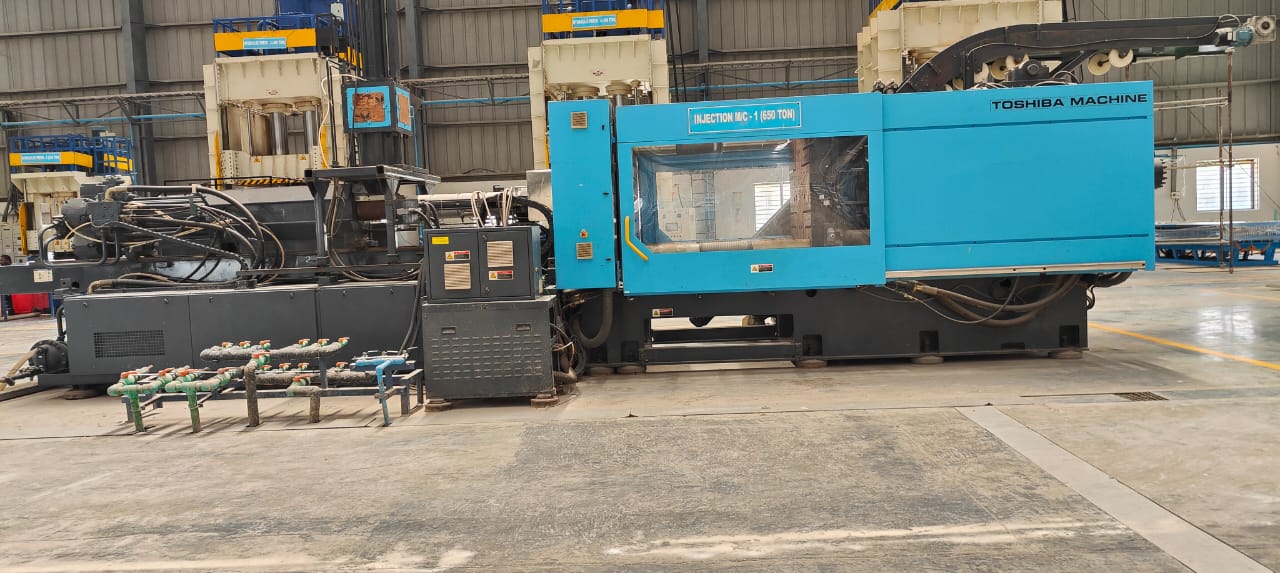

Buy Used Injection Moulding Machine from Toshiba, Model - Aswa 650-1000-7000

SKU : 2506377

View more images

I am a dealer

Subscribe for similar machines

Pump Unit 75/90 kW
Clamping Force 6500 kN
Locking Force 7150 kN
Mould Opening Stroke 950 mm
Minimum Mould Height 450 mm
Maximum Mould Height 930 mm
Max. Daylight Between Platens 1880 mm
Overall Size of Platens 1450 × 1350 mm
Distance Between Tie Bars 1000 × 900 mm
Hydraulic Ejector – Stroke 300 mm, Ejection Force: 139 kN, Retraction Force: 57 kN
Injection Unit Size – Screw Diameter 95 mm, L/D Ratio: 20, Injection Pressure: 1850 bar, Cylinder Head Volume: 2700 cc, Shot Weight in PS (PE): 1572/691 g
Rate of Injection in PS – Without Accumulator 572/691 g/s, With Accumulator: 1980 g/s
Plasticising Flow in PS (PE) Stage 1 80 g/s
Plasticising Flow in PS (PE) Stage 2 86/95 g/s
Screw Stroke 380 mm
Max. Distance of Nozzle Retraction 500 mm
Max. Nozzle Dipping Depth (SVO) 40 mm
Nozzle Contact Force 45 kN
Heating Capacity of Screw Cylinder 42.3 kW
Hopper Capacity 100 kg
General Data
Oil Tank Capacity 1300 L
Pump Unit 75/90 kW
Total Installed Electric Power 100/119/135 kW
Net Weight (Without Oil) – CL/UL/U 25700–7500–33200 kg
Machine Dimensions (L × B × H) 11225 × 4275 × 2480 mm
