Band Saw

Buy Used Band Saw from Behringer, Model - HBP800-1304G- NC2-PC

SKU : 250696

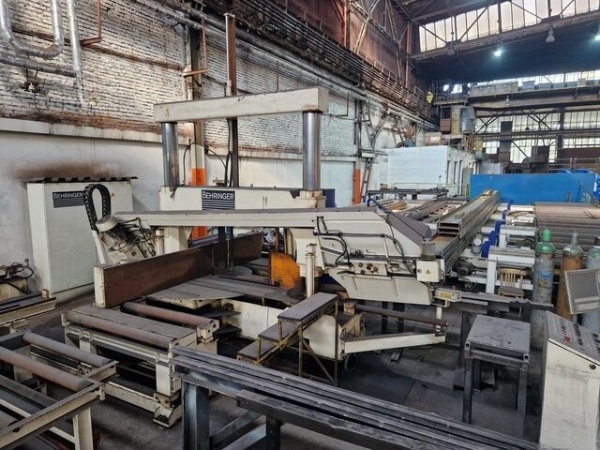

Used Behringer Band Saw HBP800-1304G- NC2-PC

Price : €55,200

CONTACT SELLER

Machine overview

Machine Specifications

    Machine Description

    • Fully Automatic Metal Band Saw
    • Working Range (Diameter / Flat)
    • At 90° Ø 800 mm / 1300 × 750 mm
    • At 75° (right) Ø 800 mm / 1150 × 750 mm
    • At 60° (right) Ø 800 mm / 1000 × 750 mm
    • At 45° (left) Ø 600 mm / 800 × 600 mm
    • Minimum Material Dimensions
    • Round / Flat Ø 30 mm / 20 × 20 mm
    • Smallest Cutting Length (90°) 35 mm
    • Cutting Speed Range 17 – 120 m/min
    • System Pressure (incl. Belt Tensioning) 95 bar
    • Drive Power
    • Belt Drive Motor 11 kW
    • Hydraulic Pump Motor 5.5 kW
    • Cooling Pump Motor 0.12 kW
    • Power Supply Motor 0.09 kW
    • Total Power Input (approx.) 28 kW
    • Electrical Specifications
    • Voltage 400 V, 50 Hz
    • Control Voltage / Hydraulic Valve Voltage 24 V DC
    • Current Rating approx. 38 A
    • Fuse Protection 58 A
    • Cable Cross-Section (min.) 4 × 16 mm²
    • Other Details
    • Saw Blade Dimensions See title page
    • Material Flow Height (Working Height) 830 mm
    • Net Weight 1600 kg
