Hammer

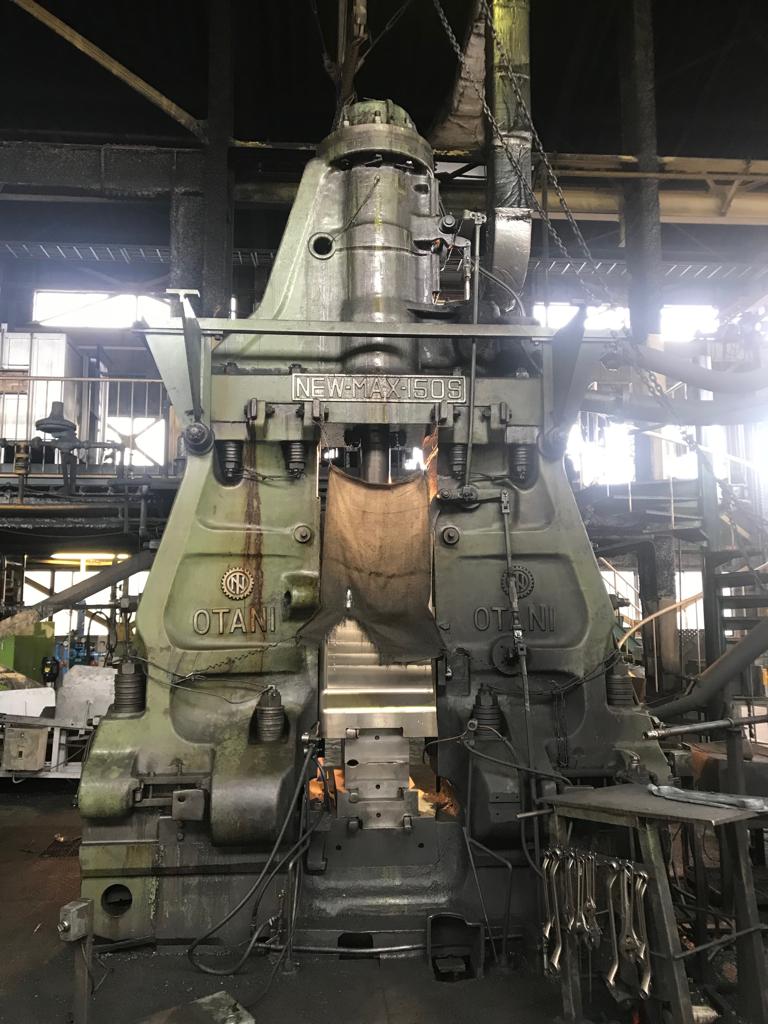

Buy Used Hammer from Otani of year - 1981, Model - New-Max 150S

SKU : 2503115

I am a dealer

Subscribe for similar machines

Closed Die Forging Hammer
Dropping Section Weight 2250 Kg
Normal Die Weight (Maximum) 450 Kg
Maximum Stroke 950 mm
Guide Distance 590 mm
Die Thickness 350 mm
Ram Bottom Surface Size 570 mm (Width) x 550 mm
Inlet Pipe Size 100 (A) (4B) Note: Clarification may be needed on standard (A) and (B) in this context.
Exhaust Pipe Size 125(A) (5B) Note: Clarification may be needed on standard (A) and (B) in this context.
Maximum Stamping Force 6800 Kg-m
Required Air Compressor Capacity 110 Kw
Maximum Air Pressure 7 Kg/cm²
