CNC Press Brake

Buy Used CNC Press Brake from Amada of year - 2000, Model - Promecam HFE 220-3000L

SKU : 2503419

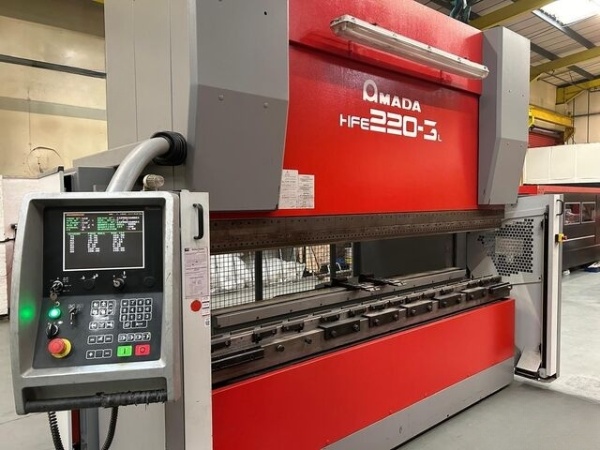

Used Amada CNC Press Brake 2000 Promecam HFE 220-3000L

Price : €39,000

CONTACT SELLER

Machine overview

Machine Specifications

  • Force 220 Ton
  • Width 3000 mm

Machine Description

  • Long Stroke
  • Equipped with WILA Tooling System
  • Minimum Usable Press Force 260 kN
  • Beam Length 3220 mm
  • Distance Between Frames 2700 mm
  • Throat Depth 420 mm
  • Stroke Length 350 mm
  • Open Height 620 mm
  • Beam Width 180 mm
  • Table Height 960 mm
  • Minimal Increment 0.01 mm
  • Positioning Accuracy of the Beam ±0.01 mm
  • Approach Speed (without protection) 10 mm/s
  • Approach Speed (with protection) 100 mm/s
  • Maximum Bending Speed 10 mm/s
  • Return Speed 100 mm/s
  • Motor Power 18.5 kW
  • Mains Rating 20 kVA
  • Mains Voltage 400 V
  • Mains Frequency 50 Hz
  • Hydraulic Oil Capacity 295 L
  • Maximum Hydraulic Pressure 300 bar
  • Overall Length (±10 mm) 4360 mm
  • Overall Depth (±10 mm) 2660 mm
  • Overall Height (±10 mm) 3200 mm
  • Approximate Weight 15,200 kg
  • Overall Length (±10 mm) 4510 mm
  • Overall Depth (±10 mm) 2810 mm
  • Approximate Weight 15,350 kg
  • WILA tooling system with a large amount of WILA tooling
  • Full-length hydraulic clamping for efficient tool changes
  • AMADA standard color
