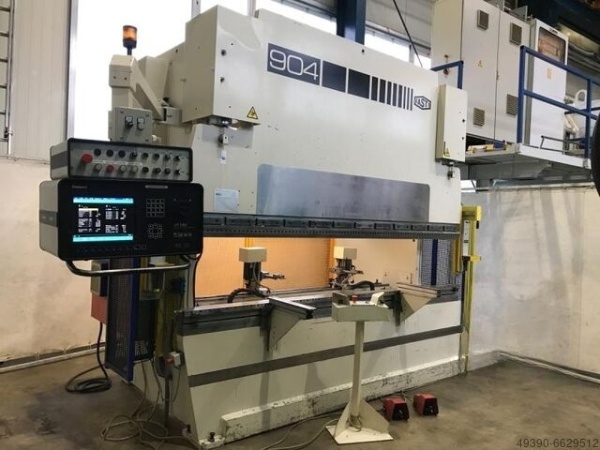

CNC Press Brake

Buy Used CNC Press Brake from Fasti of year - 1995, Model - 904-125/30

SKU : 221173

I am a dealer

Subscribe for similar machines

make no. 95-904-5775 year of construction 1995
pressure capacity 125 ton.
working length 3050 mm
stroke approx. 335mm
upright projection 300 mm
Clearance between the side stands 2550 mm
Tool mounting height max. 465 mm (opening width between the tool holders)
Table width 90 mm (the clamping system is mounted on the table)
Table height above floor 875 mm (910 mm with clamping system)
backgauge X-axis 500 mm
backgauge R-axis 115 mm
backgauge Z-axis approx. 1950 mm
Lowering speed Y rapid traverse 90 mm/s
Lowering speed Y-operation 8.9 mm/s
Return stroke speed Y-retraction 75 mm/s
Oil filling approx. 160 liters
Motor power 18,5 kW
Mains connection 400 Volt, 50 Hz, 20 Amp.
- 7 axes CNC control DELEM type DA 58 with LCD screen
- 1 axis for backgauge - stop depth (X-axis)
- 2 axes for backgauge - stop height (finger R1 + finger R2)
- 2 axes for backgauge - stop finger, laterally movable (finger Z1 + finger Z2)
Dyynui
- 2 axes for pressing beam with servo valves and measuring system Y1 and Y2
- operation by electro foot switch and 2-hand control panel or 2-hand control panel only
- hydraulic tool clamping for the upper tool system TRUMPF, with 20 mm clamping groove
- hydraulic tool clamping for the lower tool with 13 mm table groove, depth 21 mm (tool pin 13 x 20 mm)
- safety light barrier FIESSLER, type AKAS
- 2 pieces material support arms at the front manually laterally movable
