This machine not available

Cut To Length Line And Slitting Line

Buy Used Cut To Length Line And Slitting Line from Arku of year - 2005, Model - RM 50X

SKU : 2406633
Used Arku Cut To Length Line And Slitting Line 2005 RM 50X

CONTACT SELLER

Machine overview

Machine Specifications

  • Controller Siemens
  • Coil Width 500 mm
  • Sheet Thicknes 4 mm
  • Coil Weight 10.5 Ton

Machine Description

  • PLC Siemens S7 300
  • Overall Specifications (Coil Lines)
  • Sheet Width Max. 500 mm
  • Sheet Thickness Max. 4 mm
  • Coil Weight Max. 10.5 tons
  • Feedstock Transport Direction Right to left
  • Coil Chair
  • Coil Weight Max. 10.5 tons
  • Stroke 750 mm
  • Decoiler
  • Design Single reel
  • Sheet Width Max. 500 mm
  • Sheet Width Min. 150 mm
  • Coil Weight Max. 10.5 tons
  • Max. Diameter of Coil 2020 mm
  • Mandrel Expansion Range From 470 mm
  • Mandrel Expansion Range Up To 530 mm
  • Feed Velocity Max. 20 m/min
  • Leveller Unit
  • Sheet Width Max. 500 mm
  • Sheet Width Min. 150 mm
  • Sheet Thickness Max. 4 mm
  • Sheet Thickness Min. 2 mm
  • Number of Leveller Rolls 9
  • Diameter of Leveller Rolls 56 mm
  • Diameter of Feed Rolls 150 mm
  • Feed Velocity Min. 1 m/min
  • Feed Velocity Max. 20 m/min
  • Cut-To-Length Shear
  • Sheet Width Max. 530 mm
  • Sheet Thickness Max. 4 mm
  • Coil loading chair by HUBTEX

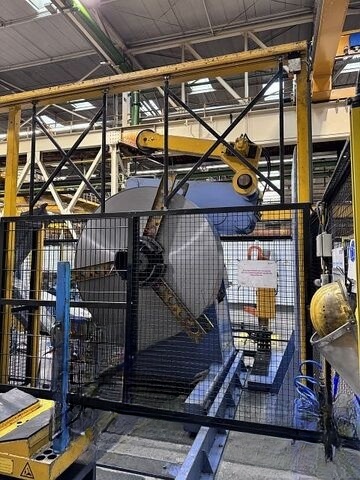

  • ARKU single-sided decoiler
  • ARKU feed straightening machine with ±0.1 mm feeding precision
  • Measuring wheel to verify feed length
  • Cut-to-length shear by Huttenlocher & Schäfer, constructed in 2017
