Buy Used Fiber Laser from Durma of year - 2017, Model - HD-TC 60170

SKU : 2503176

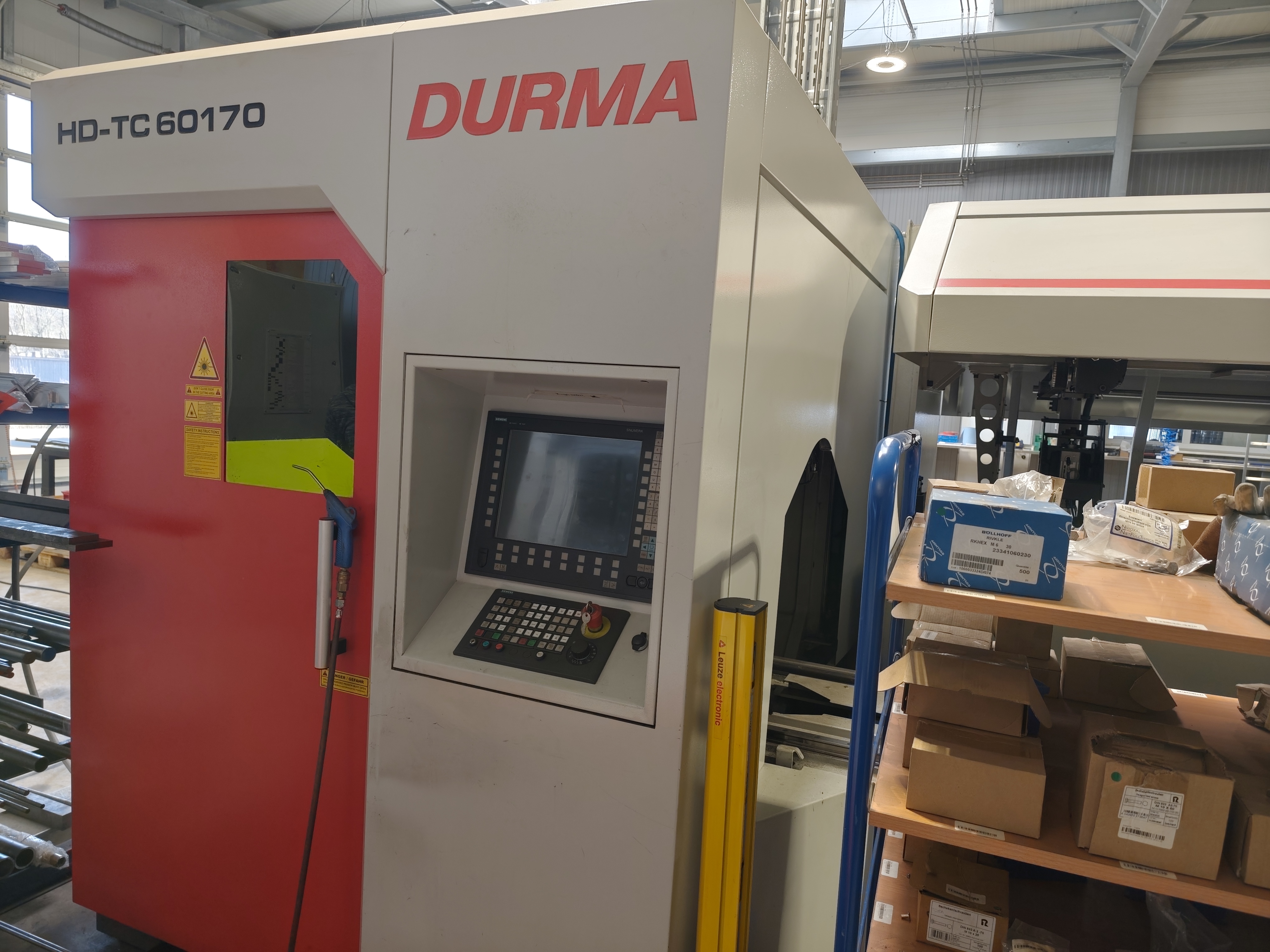

Used Durma Fiber Laser 2017 HD-TC 60170

Price : RFQ

CONTACT SELLER

Machine overview

Machine Specifications

  • Controller Siemens 840D SL
  • Laser Power 2000 Watt

Machine Description

  • Year 2017 (Commissioned June 2019)
  • Operating Hours Approx. 8,700
  • Cutting Profiles Round, Square, Rectangular
  • Max. Tube Diameter 170 mm
  • Max. Square Profile 120 x 120 mm
  • Max. Rectangular Profile 150 x 100 mm
  • Min. Tube Diameter 20 mm
  • Max. Material Length 6,500 mm
  • Min. Material Length (Auto Load) 3,000 mm
  • Last Cut Material Length 185 mm
  • Unloading Length 6,000 mm
  • Max. Material Weight 37.5 kg/m
  • Max. Workpiece Weight 210 kg
  • Max. Bundle Weight 3,000 kg
  • Axis Speeds
  • X 90 m/min
  • Y 50 m/min
  • Z 45 m/min
  • A 1,200°/s
  • Max. Cutting Thickness
  • Structural Steel 8 mm
  • Stainless Steel 4 mm
  • Aluminum 6 mm
  • Copper 2 mm
  • Brass 4 mm
  • Laser
  • Power 2,000 W
  • Source IPG Fiber
  • Machine Dimensions
  • Space Requirement 16,000 x 7,400 mm
  • Weight 20,000 kg
  • Equipment
  • Precitec Light Cutter Head
  • Vanterm Compact Filter System
  • Automatic Weld Seam Detection
  • Real-Time Measuring System for Centering Chucks
  • Automation
  • Automatic Loading System (6,500 mm)
  • Unloading Unit (6,000 mm)
  • Conveyor Belt System with Small Parts Conveyor
  • Safety
  • Light Barriers
