Buy New Fiber Laser from Rayzon, Model - Trend 3015E-CP15M

SKU : 2403609

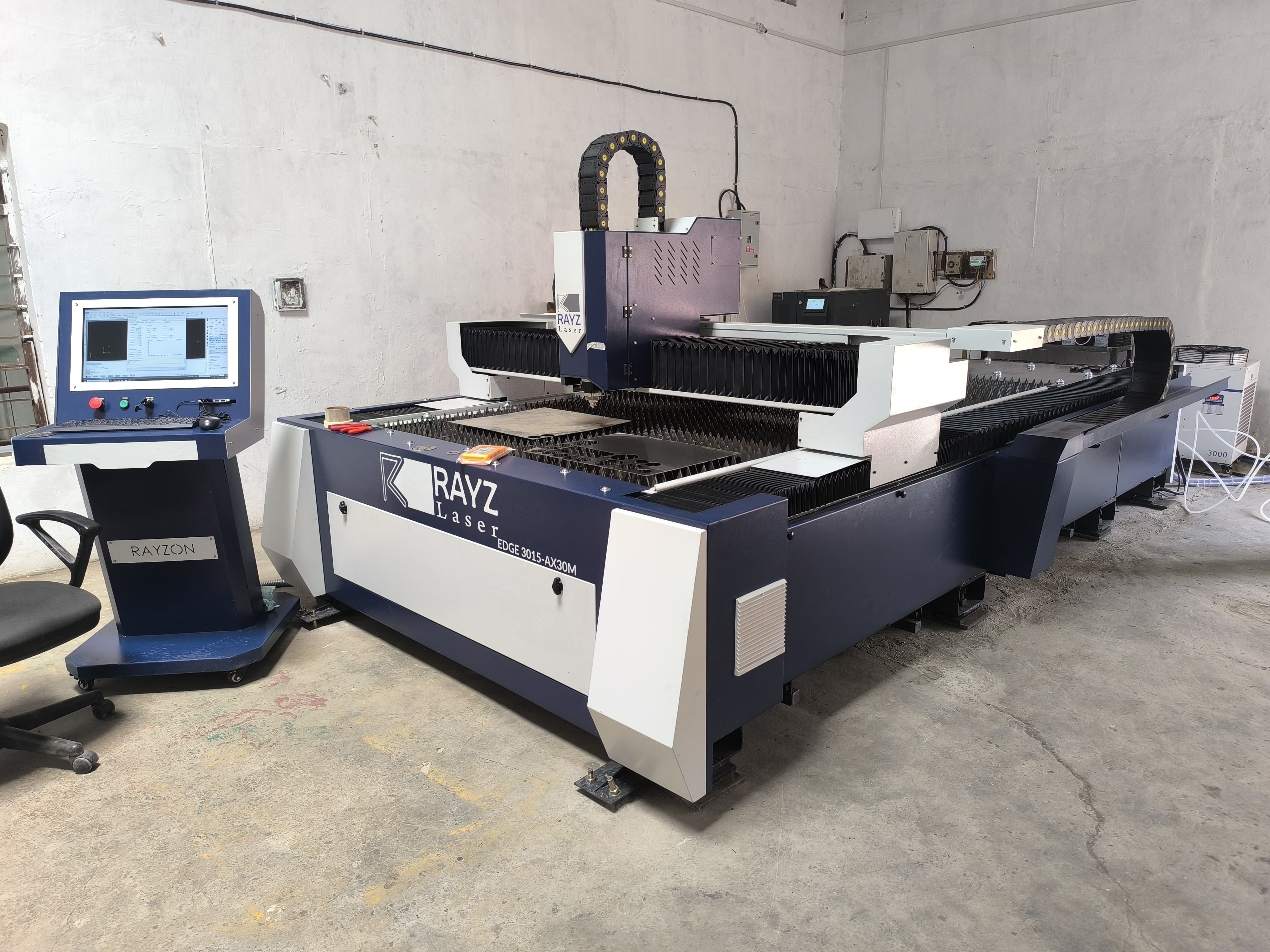

New Rayzon Fiber Laser Trend 3015E-CP15M

Price : ₹1,800,000

CONTACT SELLER

Machine overview

Machine Specifications

  • Controller Cypcut
  • Laser Power 1500 Watt
  • X Travel 3000 mm
  • Y Travel 1500 mm

Machine Description

  • Fiber Laser Cutting Machine
  • Cutting Head BOCI BLT 321
  • Servo Drive/Motor 1500W × 3, 400WX1
  • Speed Reducer Ratio 5:1, Backlash 5
  • Rack and Pinion Module 2 Helical Rack
  • Water Base Chiller 1.5 TR
  • High Pressure Proportional Valve 30 Bar
  • Solenoid Valve 30 Bar
  • Lubrication Auto Oil Pump
  • Connected Electric Load 12 KW
  • Standard Outline Features
  • Working Area 3100 × 1550 mm clear working area
  • Machine Structure Pipe + Plate, Stress Relieved
  • Gross Weight 2500 kg
  • Positioning Accuracy ±0.05 mm/m
  • Cutting Accuracy ±0.02 mm/m
  • Speed – Rapid Travel 60–80 m/min, Z travel – 150 mm
  • Tight Sealing of Optics of Cutting Head
  • Loading / Unloading Area Front & Side with Roller Support
  • Footprint 5.5 × 3 m (includes operator space and free area for sheet loading)
  • No Gas Alarm with Regular Alarms for Chiller, Laser Source, etc.
  • Precise Pressure Control via 25 Bar High Pressure Proportional Valve
  • Auto Gas Selection via Software (Oxygen / Nitrogen / Air)
  • Professional Installation, Operation, and Maintenance Training
  • Optional Features
  • Dual Pallet
  • Close Body
  • Side Opening Doors
  • Section-Wise Suction
  • MAX PHOTONICS ELITE with G5 Adaptor
  • Working Area Options 4100 × 2100 mm, 6300 × 2550 mm
  • Additional Warranty
  • Section-Wise Suction and Blower
