This machine not available

Laser Punch Combination

Buy Used Laser Punch Combination from Amada of year - 2011, Model - EML3610NT

SKU : 2505507

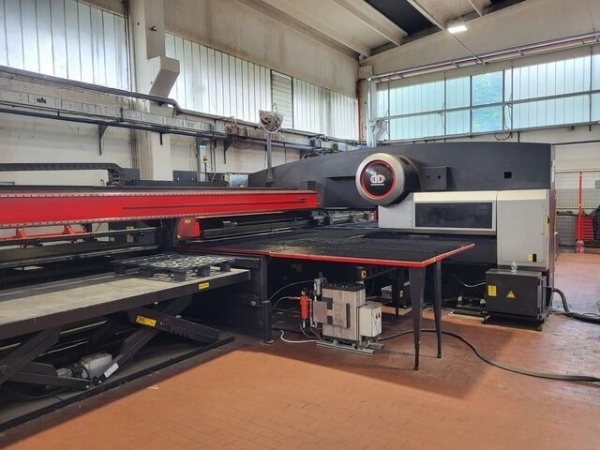

Used Amada Laser Punch Combination 2011 EML3610NT

CONTACT SELLER

Machine overview

Machine Specifications

  • Laser Power 2500 Watt

Machine Description

  • Laser Punching Combination Machine
  • Cutting Force (Max.) 300 kN
  • Laser Power 2.5 kW (CO₂)
  • Total Grid Connection 400 V / 68.3 kVA
  • Connected Load 60 kVA
  • Compressed Air Connection 8 bar; 48 m³/h
  • Width of Protected Area (Max.) 30 m
  • Minimum Safety Distance 1.36 m
  • Machine Response Time + Firewall Response Time 320 ms
  • Stopping Time 300 ms
  • Machine Braking Distance 180 mm
  • Machine Weight 24,000 kg
  • Main Features
  • Combined punching and laser cutting
  • Automatic part picking (suction cups, up to 45 kg)
  • Pallet exchange during operation
  • Automatic sheet feeding (max. 3050×1500 mm)
  • Residue collection after cutting
  • Double loading bay for continuous operation
  • Automatic bale delivery (1500×400 mm) with dual conveyor
  • Turning station with 41 fixed stations and 4 rotating
  • Automatic tapping system
  • 3 manually adjustable clamps
  • Cutting dimensions 3020×1500 mm
  • Laser cutting dimensions 2000×1500 mm
  • Max. sheet thickness 6 mm (brush table)
  • Pneumatic clamping device
  • Included Accessories
  • Light barrier
  • Wire cutting set
  • Bale slide sensor
  • Chip extraction system
  • Separate lubrication for punching and threading tools
  • Sheet metal bending sensors
  • Conveyor belt for punching waste removal
  • Punches and sharpener
