Home
Sheet Metal
Laser Punch Combination
Trumpf

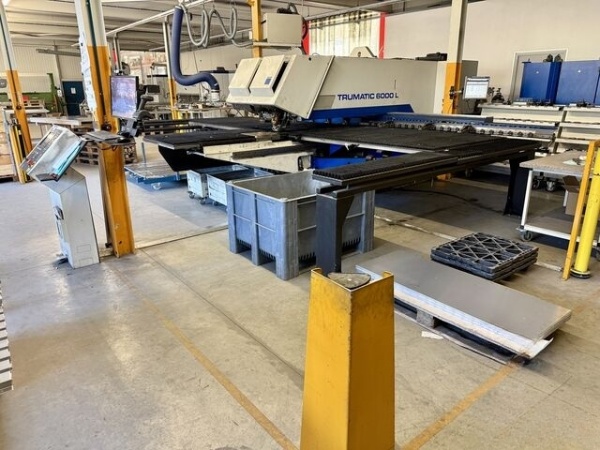

Trumatic 6000 L
Laser Punch Combination
Buy Used Laser Punch Combination from Trumpf of year - 2004, Model - Trumatic 6000 L
SKU : 2505362
Price :
RFQ
CONTACT SELLER
Hello, Your machine Trumpf - Laser Punch Combination listed on Zatpatmachines.com. I am interested in buying it. I'm looking forward to your offer. Kind regards
I am a dealer
Subscribe for similar machines
SEND REQUEST
Privacy Statement
Machine
overview
Type
Laser Punch Combination
Category
Sheet Metal
Brand
Trumpf
Year
2004
Condition
Used
Location
Germany
Machine
Specifications
Controller
Siemens 840D
Laser Power
2700 Watt
X Travel
2585 mm
Y Travel
1650 mm
Machine
Description
Laser Punch Press
Punching Unit
Punching force
22 tons
Max. workpiece weight
230 kg
Laser power
2,700 W
Control system
Siemens Sinumerik 840 D
Punching work area
3,085 × 1,740 mm
Combined work area
2,585 × 1,650 mm
Max. sheet thickness
8 mm
Max. punching diameter
76.2 mm
Rapid traverse (X / Y / simultaneous)
90 / 60 / 108 m/min
Tool holder
Hydraulic mono-tool holder, 360° rotation
Pressure clamp
Programmable for repositioning operations
Chip handling
Chip bucket
Laser Unit
Type
High-frequency excited TruFlow CO₂ laser
Laser work area
3,085 × 1,650 mm
Laser power
2,700 W
Cutting heads
5" lens, 7.5" lens, quick-change cutting head system
Distance control
DIAS
Cutting technology
HI-LAS high-pressure cutting
Laser control
TASC 3
Functions
AutoLas, ContourLas
Machine Dimensions & Weight
Width
2,400 mm
Length
8,700 mm
Height
7,800 mm
Total weight
22,500 kg
Operating Hours
Total on-time
35,000 h
Laser on-time
2,507 h
Beam on-time
480 h
Equipment & Features
Cooling unit
500 × 500 mm sensor-monitored parts chute
2 good parts crates
Ejection cylinder on laser chute
Automatic tool length compensation
Tool spray lubrication
Punch slug extraction
2nd lubricant container
Multi-beam light barriers
Hydraulic quick-release system
Extraction and compact dust extractor
MultiTool function
Thread forming function
Multishear function
Multibend function
Singing/fast beading function
TRL Sheetmaster preparation
Vibration-damped installation
Brush tables
