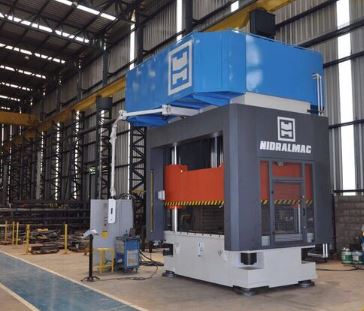

4-Column Press
Passage Width 2500 mm
Total Power Requirement 62 kW
Machine Weight (Approx.) 27.5 t
Dimensions (L × W × H) (Approx.) 3950 × 2200 × 4850 mm
Retraction Force 40 t
Main Cylinders 2 pieces
Column Diameter 220 mm
Installation Height 1300 mm
Table Size 2500 × 1600 mm
Ram Size 3100 × 1600 mm
Table Height Above Floor 900 mm
Forward Speed 200 mm/sec
Return Speed 200 mm/sec
Working Speed 5 - 15 mm/sec
Oil Tank Capacity 1500 l
Oil Quantity 1200 l
Pressure Control Adjustable 50 - 400 t
Hydraulic Components Bosch Rexroth
Thermoforming Cushion 1400 × 800 mm
Thermoforming Unit Capacity 30 - 60 t
Deep Drawing Cushion Stroke 250 mm
Thermoforming Cushion Speed 5 - 80 mm/sec
Robust Machine Body Solid welded construction for durability
Piston Rod Induction hardened and chrome plated
T-Slots According to DIN 650-22 (22 mm) or customer specifications
CE Certificate Manufactured according to EU standards
Material Engineering steel LCG ASTM A36
Travel Control Adjustable via monitor
Monitor Siemens 12-inch display
Hydraulic Block Monitored by safety PLC
Light Sensors (Front + Rear) Sick 1300 mm
Electrical Control Box Wall-mounted
Interior Lighting LED illumination
Energy Control System Reduces idle pump consumption to approx. 2 kW
Remote Control For remote maintenance
Operation Modes Manual, semi-automatic, or fully automatic
Two-Hand Operation On movable stand
Pressure Build-Up Up to 400 t within max. 4 seconds after closing the die
Side Enclosures
Left Side Door (1000 × 800 mm) with Ø 20 mm cross bars
Right Side Door (1000 × 800 mm) with Ø 20 mm cross bars
