Power Press

Buy Used Power Press from Komatsu of year - 1991, Model - E3T 950

SKU : 2506227

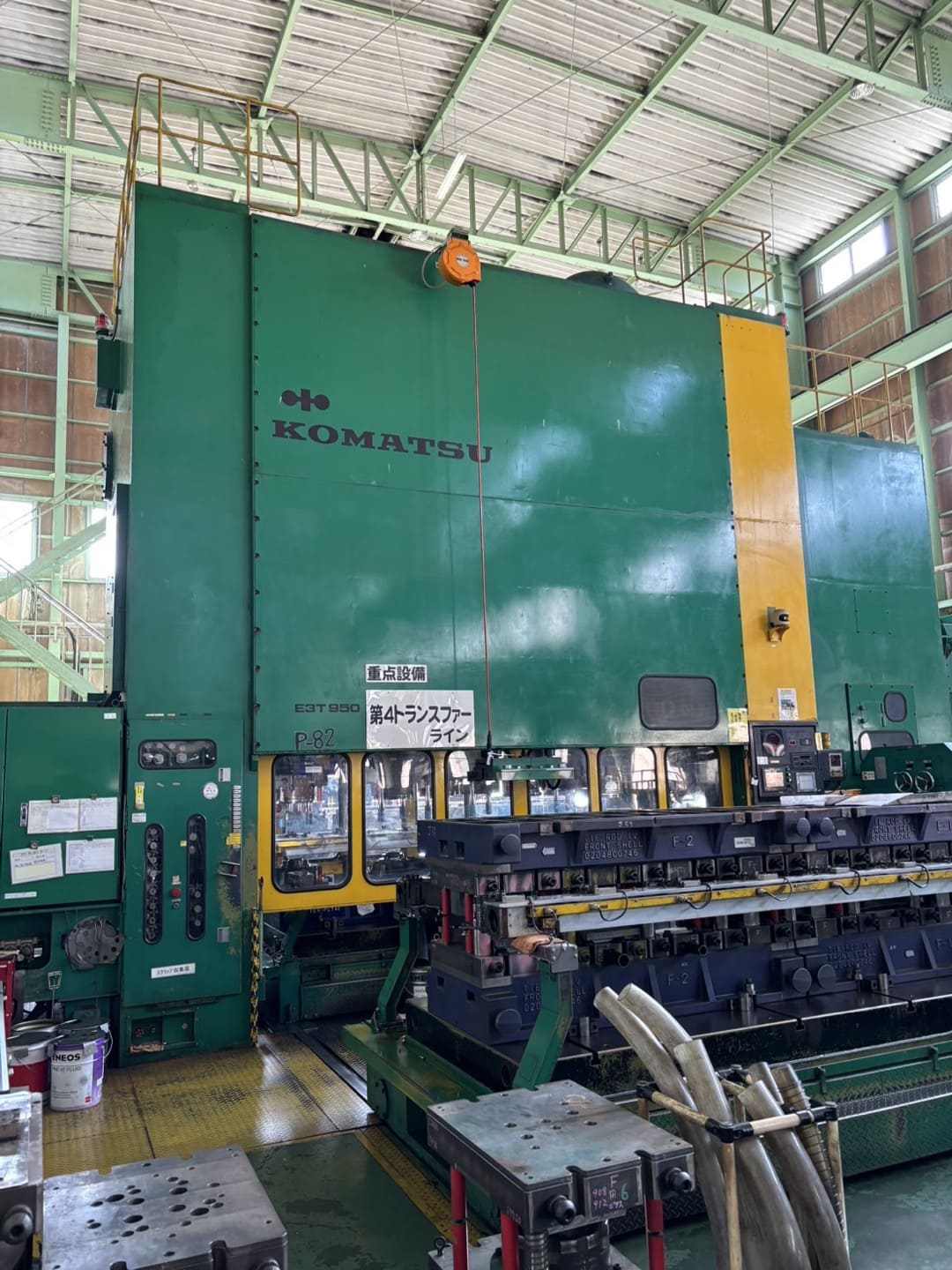

Used Komatsu Power Press 1991 E3T 950

Price : $620,000

CONTACT SELLER

Machine overview

Machine Specifications

  • Force 800 Ton
  • Stroke 600 mm

Machine Description

  • 800 Ton Transfer Press + 150 Ton Blanking Press
  • Transfer Press
  • Press Type 2 Point, Plunger Guide, Eccentric Drive
  • Stroke 600 mm
  • SPM (2D) 11–22
  • Die Height 950 mm
  • Slide Adjustment 150 mm
  • Slide Size 3600 × 1400 mm
  • Bolster Size 3600 × 1400 mm
  • Main Motor SCR 110 kW, 400V, 50Hz
  • Air Pressure 5 kg/cm²
  • Balance Capacity 12 Ton
  • Number of Stages 8
  • Max Drawing Depth (3D) 170 mm
  • Micro-Inching (No Load) 5 Ton
  • Transfer Device
  • Feed Stroke 450 mm
  • Clamp Stroke 150 mm
  • Lift Stroke 150 mm
  • Feed Bar Internal Width 600 mm
  • Die Cushions
  • Stations No.1–8 10 Ton, Stroke: 170 mm, Pad Size: 350 mm
  • Slide Knockout 5 Ton, Stroke: 170 mm, Stations No.1–8
  • Blanking Press
  • Stroke 100 mm
  • SPM 11–20
  • Die Height 370 mm
  • Slide Adjustment 100 mm
  • Slide Size 1300 × 1000 mm
  • Bolster Size 1300 × 1000 mm
