Power Press

Buy Used Power Press from Komatsu of year - 1982, Model - E4S1200

SKU : 2506226

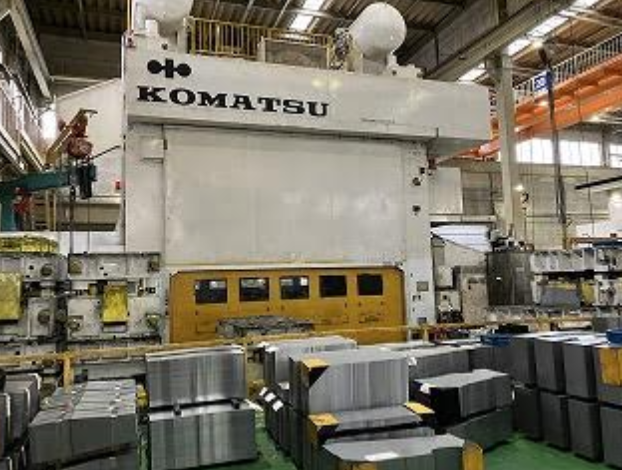

Used Komatsu Power Press 1982 E4S1200

Price : $720,000

CONTACT SELLER

Machine overview

Machine Specifications

  • Force 1200 Ton
  • Stroke 600 mm

Machine Description

  • Transfer Press
  • Overhaul Year 1999
  • Crown Replacement 1999
  • Transfer Equipment Upgrade Mechanical to Servo Type (1999)
  • Press Specifications
  • Press Capacity 1200 Ton
  • Station Max Capacity 450 Ton
  • Stroke 600 mm
  • SPM (3D) 5, 10–22
  • SPM (2D) 5, 10–22
  • Die Height 1020 mm
  • Slide Adjustment 150 mm
  • Slide Size 4800 × 1700 mm
  • Bolster Size 4500 × 1700 mm
  • Bolster Thickness 300 mm
  • Main Motor SCR 160 kW
  • Air Pressure 5 kg/cm²
  • Power Supply 420V
  • Die Cushions
  • Station No.1 80 Ton × 1, Stroke: 250 mm
  • Station No.2–5 35 Ton × 4, Stroke: 250 mm
  • Pad Size 800 × 1420 mm
  • Air Type Cushions.
  • Transfer Unit
  • Feed Stroke 0–900 mm
  • Clamp Stroke (Side) 0–250 mm
  • Lift Stroke 0–100 mm
  • Feed Bar Internal Width 900–1700 mm
  • Press Dimensions (L×W×H) 6900 × 6300 × 9500 mm (above floor)
