Turret Punch Press

Buy Used Turret Punch Press from Trumpf of year - 2017, Model - TruPunch 3000

SKU : 2505467

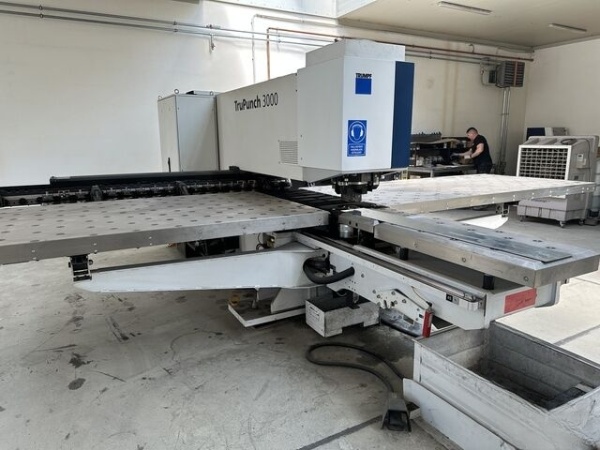

Used Trumpf Turret Punch Press 2017 TruPunch 3000

Price : RFQ

CONTACT SELLER

Machine overview

Machine Specifications

  • Controller Bosch
  • Force 20 Ton

Machine Description

  • Large Format punching and stamping machine
  • Machine Construction
  • C-frame design
  • Coordinate guide system
  • Linear magazine with 24 slots for clamps and tools
  • 3 hydraulic clamps
  • Maintenance-free 3-phase servo motor drives
  • Repositioning unit with programmable stripper
  • Foot switch for clamp control
  • Side removal flap
  • Transportation and assembly fixtures
  • Punching Head
  • Servo-electric punching head
  • Rotatable single tool adapter
  • Manually adjustable presser foot force
  • Programmable presser foot position
  • Tool length compensation
  • Spray lubrication for punches
  • Vacuum slug removal
  • Forming capability
  • High stroke rate
  • Tool lubrication level monitoring
  • Control System
  • TRUMPF control based on Bosch Rexroth IndraMotion MTX
  • 17" TFT control panel
  • Integrated technology database
  • Teleservice interface via Internet
  • Automatic shutdown mechanism
  • NC program management
  • Integrated production planning system
  • Data Transfer
  • USB interface
  • Network connection (RJ45)
  • Safety Features
  • CE marked
  • Multi-beam light barriers
  • Fast shutdown of drives
  • Standard Configuration
  • Index pin position Right-hand inner side
  • Ball-fitted tables
  • Finished part container
  • Chip container
  • Benefit Packages
  • 2 – Productivity Package
  • MultiTool function
  • Sensor for part chute
  • Spray lubrication die with level monitoring
  • 3 – Punch Quality Package
  • MultiShear function
  • Deburring and roller technology
  • Adaptive stroke calibration
  • 4 – Forming Package
  • Tapping function with breakage control
  • Marking and rapid beading functions
  • MultiBend function
  • Height-adjustable clamps
  • 5 – Function Engraving
  • 6 – Smart Punch Monitoring
  • 7 – Wireless Operation Points
  • 8 – MobileControl App
  • 9 – 21 RTC Cartridges + Tools
