Welding Power Sources

Buy New Welding Power Sources from RL Robotics, Model - Pulse MIG-500II

SKU : 24121365

I am a dealer

Subscribe for similar machines

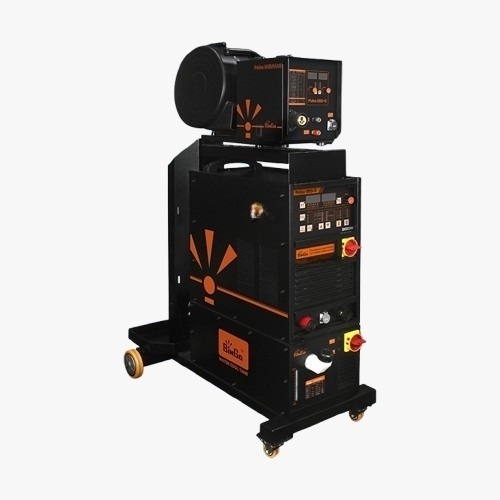

Inverted dual pulse MIG/MAG gas shielded welding machine
Rated Input Voltage / Frequency Three-phase 380V ±10%, 50Hz
Rated Input Capacity (KVA) 27.6
Rated Input Current (A) 42
Rated Output Voltage (V) 39
Rated Load Sustainability (%) MIG 100 / MMA 60
Output No-load Voltage (V) 85
Output Current Range (A) 20 ~ 500
Output Voltage Range (V) 14 ~ 50
Welding Wire Diameter (mm) 0.8, 1.0, 1.2, 1.6, 2.0
Welding Wire Type
Pulse characteristics Solid carbon steel, carbon steel with chemical core, stainless steel solid, stainless steel with chemical core.
Al-Mg alloy, pure aluminum, Al-Si alloy, copper, and copper alloy.
Constant Voltage Characteristics CO₂ carbon steel, carbon steel, carbon steel with chemical core
Wire Feeding Type Push / Push-pull
Gas Flow (L/min) 15 ~ 20
Hand Arc Welding Current (A) 60 ~ 500
Cooling Mode Water cooling / Air cooling
Shell Protection Grade IP21S
Insulation Grade H/B
