Panel Saw

Buy Used Panel Saw from Jai Industries of year - 2020, Model - J-3200

SKU : 2506333
Used Jai Industries Panel Saw 2020 J-3200

Price : ₹135,000

CONTACT SELLER

Machine overview

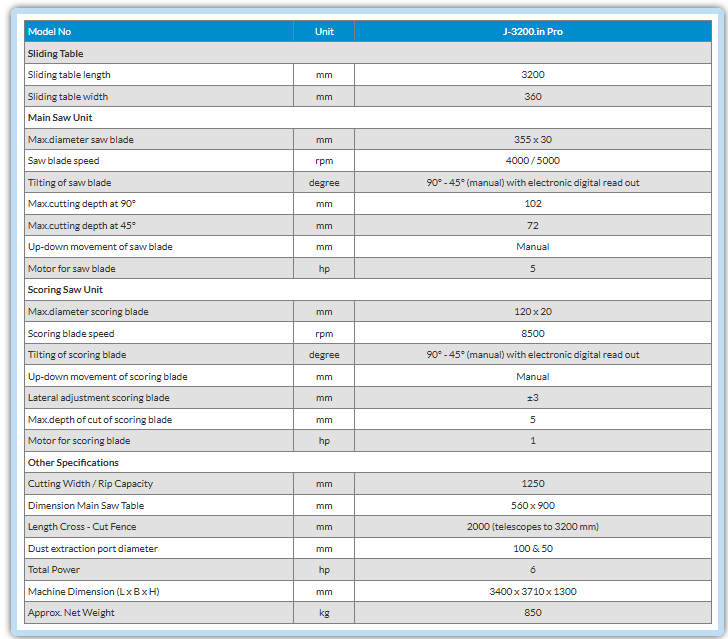

Machine Specifications

    Machine Description

    • Sliding Table
    • Sliding Table Length 3200 mm
    • Sliding Table Width 360 mm
    • Main Saw Unit
    • Max. Diameter Saw Blade 355 × 30 mm
    • Saw Blade Speed 4000 / 5000 rpm
    • Tilting of Saw Blade 90° - 45° (manual) with electronic digital readout
    • Max. Cutting Depth at 90° 102 mm
    • Max. Cutting Depth at 45° 72 mm
    • Up-Down Movement of Saw Blade Manual
    • Motor for Saw Blade 5 hp
    • Scoring Saw Unit
    • Max. Diameter Scoring Blade 120 × 20 mm
    • Scoring Blade Speed 8500 rpm
    • Tilting of Scoring Blade 90° - 45° (manual) with electronic digital readout
    • Up-Down Movement of Scoring Blade Manual
    • Lateral Adjustment of Scoring Blade ±3 mm
    • Max. Depth of Cut of Scoring Blade 5 mm
    • Motor for Scoring Blade 1 hp
    • Other Specifications
    • Cutting Width / Rip Capacity 1250 mm
    • Dimension Main Saw Table 560 × 900 mm
    • Length Cross-Cut Fence 2000 mm (telescopes to 3200 mm)
    • Dust Extraction Port Diameter 100 & 50 mm
    • Total Power 6 hp
    • Machine Dimensions (L × B × H) 3400 × 3710 × 1300 mm
    • Approx. Net Weight 850 kg
